Product Name |

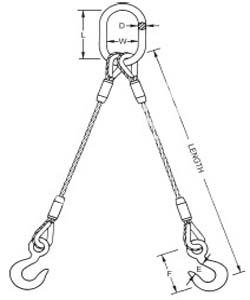

Double Type Wire Rope Sling | ||||||||||
|
Product Material |
Steel | ||||||||||
| Product No. | Rope Dia. | Working Load Limit (Ibs.) | Oblong Ring | Hook | |||||||
| 30£¦#8226; | 60£¦#8226; | 90£¦#8226; | D | L | W | E | F | Working Load (Ton) | |||
| MHAE031-DL001 | 1/4" | 2,200 | 1,940 | 1,580 | 1/2" | 4-23/32" | 2-3/4" | 15/16" | 3-7/32" | 3/4 | |
| MHAE031-DL002 | 5/16" | 3,400 | 3,000 | 2,400 | 1/2" | 4-23/32" | 2-3/4" | 1-1/32" | 3-21/32" | 1 | |
| MHAE031-DL003 | 3/8" | 4,600 | 4,200 | 3,400 | 1/2" | 4-23/32" | 2-3/4" | 1-1/16" | 4-3/32" | 1-1/2 | |
| MHAE031-DL004 | 7/16" | 6,600 | 5,800 | 4,800 | 3/4" | 6-19/64" | 3-35/64" | 1-7/32" | 4-11/16" | 2 | |
| MHAE031-DL005 | 1/2" | 8,600 | 7,600 | 6,200 | 3/4" | 6-19/64" | 3-35/64" | 1-1/2" | 5-3/4" | 3 | |
| MHAE031-DL006 | 9/16" | 10,800 | 9,600 | 8,000 | 1" | 7-7/8" | 4-21/64" | 1-1/2" | 5-3/4" | 3 | |
| MHAE031-DL007 | 5/8" | 13,200 | 11,800 | 9,600 | 1" | 7-8/8" | 4-21/64" | 1-7/8" | 7-3/8" | 5 | |
| MHAE031-DL008 | 3/4" | 19,000 | 17,000 | 13,800 | 1" | 7-7/8" | 4-21/64" | 1-7/8" | 7-3/8" | 5 | |
| MHAE031-DL009 | 7/8" | 26,000 | 22,000 | 18,600 | 1-1/4" | 9-1/6" | 5-1/8" | 2-1/4" | 9-1/16" | 7-1/2 | |
| MHAE031-DL010 | 1" | 32,000 | 30,000 | 24,000 | 1-1/4" | 9-1/6" | 5-1/8" | 2-1/2" | 10-1/16" | 10 | |
| MHAE031-DL011 | 1-1/8" | 38,000 | 34,000 | 28,000 | 1-1/2" | 11-1/64" | 5-29/32" | 2-1/2" | 10-1/16" | 10 | |
| MHAE031-DL012 | 1-1/4" | 50,000 | 46,000 | 36,000 | 1-3/4" | 13-25/64" | 7-3/32" | 3-3/8" | 12-1/2" | 15 | |
