Product Name
DIN 764 link Chain
Product Material
Steel

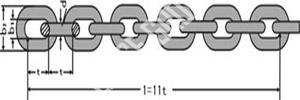

Product No. Size Inside Length(t) Inside Width (b1) Outside Width (b2) Length Per 11 Links Weight Per 100M Breaking Load Test Load
mm ¡Àmm mm ¡Àmm mm mm mm ¡Àmm kg kn kg
MHAE022-DN4001 4 0.20 16 0.30 5 14 176 1.60 31.3 7 400
0.20 0.90
MHAE022-DN4002 5 0.20 18 0.40 7 18.2 198 1.80 51.4 11.8 680
0.20 1.00
MHAE022-DN4003 6 0.20 21 0.50 8 21.5 231 2.00 74.0 16.5 850
0.20 1.10
MHAE022-DN4004 8 0.20 28 0.50 11 29 308 2.20 131.5 32 1680
0.30 1.20
MHAE022-DN4005 10 0.30 35 0.60 14 36 385 2.70 200 50 2630
0.30 1.50
MHAE022-DN4006 12 0.30 42 0.60 16 41 462 3.20 298 70 3680
0.30 1.80
MHAE022-DN4007 13 0.40 45 0.70 18 47 495 3.50 350 80 4200
0.40 2.00
MHAE022-DN4008 14 0.45 49 0.75 20 48 539 3.80 406 92 4830
0.45 2.00
MHAE022-DN4009 16 0.50 56 0.90 22 58 616 4.30 520 125 6700
0.50 2.80
MHAE022-DN4010 18 0.80 63 1.00 24 65 693 4.70 650 160 8400
0.50 2.80
MHAE022-DN4011 20 1.00 70 1.10 27 72 770 5.40 820 200 10000
0.60 3.20
MHAE022-DN4012 23 1.20 80 1.30 31 83 880 6.20 1100 250 13000
0.70 3.50
MHAE022-DN4013 26 1.30 91 1.50 35 94 1001 7.00 1400 320 16000
0.80 4.00

Note:
DIN764 link Chain,also named DIN764 round link Chain, is manufactured as per Germany standard.We supply DIN764 link Chain from 4mm to 26mm.
