Product Name |
Korean Standard Link Chain | |||||||
|
Product Material |
Steel | |||||||

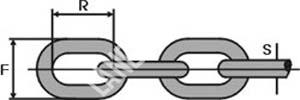

| Product No. | Nominal Size | Material Size | Inside Length | Inside Width | Length Per PC | Weight Per PC | ||
| m/m | m/m | m/m | m/m | m | kg | |||
| MHAE022-KSC001 | Short Link | 3 | 3.0 | 23.0 | 5.3 | 30 | 4.50 | |
| MHAE022-KSC002 | 4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 | ||
| MHAE022-KSC003 | 5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 | ||
| MHAE022-KSC004 | 6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 | ||
| MHAE022-KSC005 | 7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 | ||
| MHAE022-KSC006 | 8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 | ||
| MHAE022-KSC007 | 9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 | ||
| MHAE022-KSC008 | 12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 | ||
| MHAE022-KSC009 | 15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 | ||
| MHAE022-KSC010 | 16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 | ||
| MHAE022-KSC011 | 19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 | ||
| MHAE022-KSC012 | Long Link | 4 | 3.9 | 34.3 | 6.2 | 30 | 7.26 | |
| MHAE022-KSC013 | 4.5 | 4.5 | 44.4 | 9.2 | 30 | 9.46 | ||
| MHAE022-KSC014 | 5 | 4.8 | 45.0 | 11.0 | 30 | 11.31 | ||
| MHAE022-KSC015 | 6 | 6.0 | 47.0 | 12.0 | 30 | 18.00 | ||
| MHAE022-KSC016 | 7 | 6.8 | 50.0 | 11.4 | 15 | 11.19 | ||
| MHAE022-KSC017 | 12 | 12.0 | 50.0 | 18.0 | 15 | 42.00 | ||
| MHAE022-KSC018 | 15 | 14.8 | 64.0 | 23.0 | 15 | 61.44 | ||
| MHAE022-KSC019 | 19 | 19.0 | 75.0 | 25.0 | 10 | 71.00 | ||
|
Note: | ||||||||
