Product Name |
Stainless Steel Link Chain | |||
|
Product Material |
Stainless Steel | |||
|
1.Japanese Standard | ||||

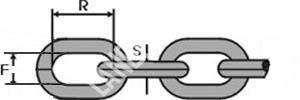

| Product No. | DIA | INSIDE LENGTH | INSIDE WIDTH | WEIGHT/M |
| S mm | R mm | F mm | KG | |
| MHAE022-SSC001 | 2 | 12 | 3.5 | 0.07 |
| MHAE022-SSC002 | 3 | 19 | 5 | 0.16 |
| MHAE022-SSC003 | 4 | 26 | 6 | 0.27 |
| MHAE022-SSC004 | 4 | 20 | 6 | 0.29 |
| MHAE022-SSC005 | 5 | 27 | 7 | 0.44 |
| MHAE022-SSC006 | 5 | 20 | 7 | 0.49 |
| MHAE022-SSC007 | 5.5 | 30 | 8 | 0.54 |
| MHAE022-SSC008 | 5.5 | 24 | 10 | 0.60 |
| MHAE022-SSC009 | 6 | 31 | 9 | 0.65 |
| MHAE022-SSC010 | 6 | 24 | 9 | 0.72 |
| MHAE022-SSC011 | 7 | 37 | 10 | 0.88 |
| MHAE022-SSC012 | 7 | 28 | 10 | 0.96 |
| MHAE022-SSC013 | 8 | 38 | 11 | 1.18 |
| MHAE022-SSC014 | 8 | 32 | 12 | 1.27 |
| MHAE022-SSC015 | 9 | 39 | 13 | 1.55 |
| MHAE022-SSC016 | 9 | 36 | 14 | 1.61 |
| MHAE022-SSC017 | 10 | 42 | 15 | 1.95 |
| MHAE022-SSC018 | 12 | 54 | 20 | 2.77 |
| MHAE022-SSC019 | 12 | 48 | 19 | 2.88 |
|
2.DIN766 standard | ||||
| Product No. | DIA | INSIDE LENGTH | INSIDE WIDTH | WEIGHT/M |
| S mm | R mm | F mm | KG | |
| MHAE022-SSC020 | 2 | 12 | 3.5 | 0.07 |
| MHAE022-SSC021 | 3 | 16 | 5 | 0.163 |
| MHAE022-SSC022 | 4 | 16 | 5 | 0.32 |
| MHAE022-SSC023 | 5 | 18.5 | 6 | 0.50 |
| MHAE022-SSC024 | 6 | 18.5 | 7.2 | 0.80 |
| MHAE022-SSC025 | 7 | 22 | 8.4 | 1.10 |
| MHAE022-SSC026 | 8 | 24 | 9.6 | 1.40 |
| MHAE022-SSC027 | 9 | 27 | 10.8 | 1.80 |
| MHAE022-SSC028 | 10 | 28 | 12 | 2.30 |
| MHAE022-SSC029 | 13 | 36 | 15.6 | 3.80 |
| MHAE022-SSC030 | 16 | 45 | 19.2 | 5.70 |
|
3.DIN 5685 standard | ||||
| Product No. | DIA | INSIDE LENGTH | INSIDE WIDTH | WEIGHT/M |
| S mm | R mm | F mm | KG | |
| MHAE022-SSC031 | 2 | 12 | 4 | 0.071 |
| MHAE022-SSC032 | 2.5 | 14 | 5 | 0.114 |
| MHAE022-SSC033 | 3 | 10 | 6 | 0.165 |
| MHAE022-SSC034 | 4 | 19 | 8 | 0.30 |
| MHAE022-SSC035 | 5 | 21 | 10 | 0.50 |
| MHAE022-SSC036 | 6 | 24 | 12 | 0.73 |
| MHAE022-SSC037 | 7 | 28 | 14 | 1.00 |
| MHAE022-SSC038 | 8 | 32 | 16 | 1.30 |
| MHAE022-SSC039 | 9 | 36 | 18 | 1.65 |
| MHAE022-SSC040 | 10 | 40 | 20 | 2.05 |
| MHAE022-SSC041 | 13 | 52 | 26 | 3.45 |
|
4.Korean standard | ||||
| Product No. | DIA | INSIDE LENGTH | INSIDE WIDTH | WEIGHT/M |
| S mm | R mm | F mm | KG | |
| MHAE022-SSC042 | 3 | 23 | 5.3 | 0.15 |
| MHAE022-SSC043 | 4 | 22 | 7.5 | 0.30 |
| MHAE022-SSC044 | 5 | 23.7 | 8.3 | 0.47 |
| MHAE022-SSC045 | 6 | 27.3 | 10 | 0.70 |
| MHAE022-SSC046 | 7 | 31 | 12 | 0.95 |
| MHAE022-SSC047 | 8 | 35 | 13.7 | 1.25 |
| MHAE022-SSC048 | 9 | 39 | 15.2 | 1.58 |
|
5.Australian standard | ||||
| Product No. | DIA | INSIDE LENGTH | INSIDE WIDTH | WEIGHT/M |
| S mm | R mm | F mm | KG | |
| MHAE022-SSC049 | 4 | 18.6 | 8 | 0.32 |
| MHAE022-SSC050 | 5 | 22 | 9.4 | 0.50 |
| MHAE022-SSC051 | 6 | 26 | 11.5 | 0.70 |
| MHAE022-SSC052 | 8 | 32.2 | 13.5 | 1.28 |
| MHAE022-SSC053 | 10 | 39 | 16.2 | 2.06 |
| MHAE022-SSC054 | 12 | 46 | 20 | 2.94 |
| MHAE022-SSC055 | 13 | 49.1 | 20.1 | 3.36 |
| MHAE022-SSC056 | 16 | 59.6 | 24.5 | 4.95 |
