Lifting Link Chains >> Round Link Chain >> Ordinary Mild Steel Link Chain >> Ordinary Link Chain
Product Name
Ordinary Link Chain
Product Material
Mild Steel

1.Short pitch link Chain

Product No. Specification Test load Breaking load Net wt per 200FT(kg)

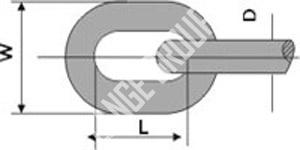

D L W
MHAE022-OC001 in mm mm mm kg kg B.F H.D.G
MHAE022-OC002 1/8 3.20 16 12 200 400 11.40 11.74
MHAE022-OC003 5/32 4.00 18.5 14.5 300 600 18.60 19.00
MHAE022-OC004 3/16 4.70 19 17 400 800 26.20 27.00
MHAE022-OC005 7/32 5.50 20 19 550 1100 36.80 38.00
MHAE022-OC006 1/4 6.35 22 21 750 1500 50.00 51.50
MHAE022-OC007 5/16 7.94 26.5 27.2 1200 2400 80.00 82.40
MHAE022-OC008 3/8 9.50 30 32 1700 3400` 122.00 125.70
MHAE022-OC009 7/16 11.11 34 36 2300 4600 164.00 169.00
MHAE022-OC010 1/2 12.70 39 43 3000 6000 210.00 216.00
MHAE022-OC011 5/8 15.80 45 53 4700 9400 334.00 344.00
MHAE022-OC012 3/4 19.00 55 63 6800 13600 485.00 499.00
MHAE022-OC013 7/8 22.20 64 74 9250 18500 656.00 675.00
MHAE022-OC014 1 25.40 73 84 12150 24300 870.00 896.00

2.Medium pitch link Chain

Product No. Specification Test load Breaking load Net wt per 200FT(kg)
D L W
MHAE022-OC015 in mm mm mm kg kg B.F H.D.G
MHAE022-OC016 1/8 3.20 20 12 200 400 10.80 11.00
MHAE022-OC017 5/32 4.00 23 15 300 600 17.40 18.00
MHAE022-OC018 3/16 4.70 25 18 400 800 24.40 25.00
MHAE022-OC019 7/32 5.50 26 19 550 1100 34.00 35.00
MHAE022-OC020 1/4 6.35 26 23 750 1500 48.80 50.00
MHAE022-OC021 5/16 7.94 32 29 1200 2400 76.00 78.00
MHAE022-OC022 3/8 9.50 35 35 1700 3400 111.00 114.00
MHAE022-OC023 7/16 11.11 38 38 2300 4600 154.00 158.00
MHAE022-OC024 1/2 12.70 50 45.5 3000 6000 194.00 200.00
MHAE022-OC025 5/8 15.80 60 56.7 4700 9400 303.00 312.00
MHAE022-OC026 3/4 19.00 76 69 6800 13600 432.00 445.00
MHAE022-OC027 7/8 22.20 90 80 9250 18500 586.00 603.00
MHAE022-OC028 1 25.40 105 95 12150 24300 770.00 792.00

3.Long pitch link Chain

Product No. Specification Test load Breaking load Net wt per 200FT(kg)
D L W
MHAE022-OC029 in mm mm mm kg kg B.F H.D.G
MHAE022-OC030 1/8 3.20 23 12 200 400 10.40 10.70
MHAE022-OC031 5/32 4.00 27 15 300 600 16.60 17.50
MHAE022-OC032 3/16 4.70 31 17 400 800 22.40 23.30
MHAE022-OC033 7/32 5.50 32 19 550 1100 32.00 33.00
MHAE022-OC034 1/4 6.35 33 21 750 1500 43.50 44.80
MHAE022-OC035 5/16 7.94 48 31 1200 2400 68.00 70.00
MHAE022-OC036 3/8 9.50 60 37 1700 3400` 96.00 99.00
MHAE022-OC037 7/16 11.11 71 41 2300 4600 126.00 129.00
MHAE022-OC038 1/2 12.70 85 48.5 3000 6000 167.00 172.00
MHAE022-OC039 5/8 15.80 114 61.5 4700 9400 256.00 264.00
MHAE022-OC040 3/4 19.00 125 75 6800 13600 381.00 392.00
MHAE022-OC041 7/8 22.20 140 88 9250 18500 527.00 543.00
MHAE022-OC042 1 25.40 155 100 12150 24300 696.00 716.00

Note:
This ordinary mild steel link Chain is manufactured as per British standard.It is the main kinds of the round link Chains.And it includes short pitch link Chain,medium pitch link Chain and long pitch link Chain.
