Lifting Link Chains >> High Tensile Chain >> Fishing Chain >> Fishing Chain
Product Name
Fishing Chain
Product Material
High-quality alloy steel
Quality Grade
G80
Safety factor
Min 4

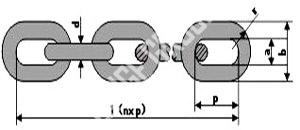

Kinds of Chain Product No. Size
(dxp)
 Width
 Weight Breeking Load (min)

lnside (a,min)
 Outside (b,max)
mm mm mm kg/m kN
Short Link Chain MHAE021-FC001 7 x 21 10 25.5 1.05 60
MHAE021-FC002 10 x 30 14 36 2.2 125
MHAE021-FC003 13 x 39 18.1 47.1 3.8 214
MHAE021-FC004 16 x 48 22.4 57.4 5.63 320
MHAE021-FC005 19 x 57 27.8 68.8 7.81 450
MHAE021-FC006 20 x 60 29 72 8.52 500
Mid Link Chain MHAE021-FC007 10 x 40 15 37 1.9 125
MHAE021-FC008 13 x 52 19.5 48.5 3.31 214
MHAE021-FC09 14 x 50 18.5 49.5 4 250
MHAE021-FC010 16 x 64 24 59 4.97 320
MHAE021-FC011 19 x 76 28.5 69.5 6.92 450
MHAE021-FC012 22 x 86 27 74 9.5 610
MHAE021-FC013 26 x 92 31 86 13.7 850
Long Link Chain MHAE021-FC014 7 x 45 10 25.5 0.82 60
MHAE021-FC015 9 x 53 15 35 1.36 100
MHAE021-FC016 11 x 63 18 43 2.16 152
MHAE021-FC017 13 x 80 22 51 2.93 214
MHAE021-FC018 16 x 100 26 61 4.34 320
MHAE021-FC019 19 x 100 27 68 6.31 450
MHAE021-FC020 22 x 120 37 84 8.74 610
MHAE021-FC021 28 x 150 44 103 14.41 980
Note:
This fishing Chain,it is the high tensile round link Chain of alloy steel for fishing. Products are available in short link Chain, mid link Chain and long link Chain.
1. Surface treatment:self-color,polishing,blackened,painted,plastic coating,hot-dip galvanize,elcctro-galvanized.
2. Special anti-abrasion treatment.
3. In short-Mid-long link Series.
4. Short Link Chain is highly flexible and meets the needs of many applications. It is the heaviest of the range and is available in 7, 5, 13, 16, 19 and 20 mm sizes.
