Mooring Cleat >> Kevel Chocks >> Kevel Chock
|
| |||||||||||||||

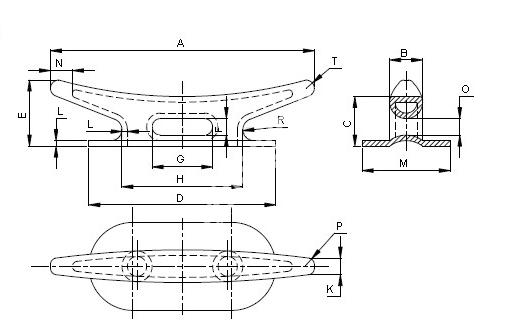

| Kevel Cleat Dimensions (inches) | |||||||||||||||
| A | B | C | D | E | F | G | H | K | L | M | N | O | P | R | T |
| 24.00 | 3.00 | 4.50 | 17.00 | 6.00 | 1.50 | 5.50 | 11.00 | 1.50 | 0.50 | 8.00 | 2.00 | 1.50 | 0.56 | 1.00 | 0.75 |
| 30.00 | 4.00 | 5.63 | 20.25 | 7.00 | 2.00 | 6.88 | 14.00 | 3.25 | 0.50 | 9.50 | 2.00 | 2.38 | 1.25 | 1.38 | 0.88 |
| 36.00 | 5.00 | 6.75 | 23.50 | 8.00 | 2.38 | 8.25 | 17.00 | 4.00 | 0.56 | 11.00 | 2.50 | 3.25 | 1.50 | 1.75 | 1.00 |
| 42.00 | 6.00 | 7.88 | 26.75 | 9.00 | 3.25 | 9.63 | 20.00 | 4.75 | 0.63 | 12.50 | 2.75 | 4.13 | 1.88 | 2.13 | 1.13 |
| 48.00 | 7.00 | 9.00 | 30.00 | 10.00 | 4.13 | 11.00 | 23.00 | 5.50 | 0.75 | 14.00 | 4.00 | 4.00 | 2.00 | 2.50 | 1.25 |
