Product Name Lifting Chain
Material High-Quality Alloy Steel
Grade G80,G1005
Standard ISO,DIN,BS,JIS,ASTM4
Safety Factor Min 46

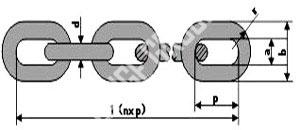

Product No. Size(dxp) Width Weight Working Load Limit Test Load Breeking Load (min)
lnside(a,min) Outside(b,max)
mm mm mm kg/m t Kn Kn
MHAE021-LC001 6x18 7.5 21 0.79 1.1 27 45.2
MHAE021-LC002 7x21 9 24.5 1.07 1.5 37 61.6
MHAE021-LC003 8x24 10 28 1.38 2 48 80.4
MHAE021-LC004 10x30 12.5 35 2.2 3.2 76 125
MHAE021-LC005 11x43 12.6 36.5 2.33 3.8 92 154
MHAE021-LC006 12x36 15 42 3.1 4.6 109 181
MHAE021-LC007 12.5x38 15.5 42.2 3.3 4.9 117 196
MHAE021-LC008 13x39 16.3 46 3.8 5 128 214
MHAE021-LC09 14x42 18 49 4.13 6.3 150 250
MHAE021-LC010 14x50 17 48 4 6.3 150 250
MHAE021-LC011 15x46 20 52 5.17 7 168 280
MHAE021-LC012 16x48 20 56 5.63 8 192 320
MHAE021-LC013 16x49 24.5 59.5 5.71 8 192 320
MHAE021-LC014 16x64 23.9 58.9 5.11 8 192 320
MHAE021-LC015 18x54 23 63 6.85 10 246 410
MHAE021-LC016 18x64 21 60 6.6 10 246 410
MHAE021-LC017 19x57 23.7 63.2 7.7 11.3 270 450
MHAE021-LC018 20x60 25 70 8.6 12.5 300 500
MHAE021-LC019 22x65 28 74.2 10.7 15.3 366 610
MHAE021-LC020 22x66 28 77 10.2 15.3 366 610
MHAE021-LC021 22x86 26 74 9.5 15.3 366 610
MHAE021-LC022 24x72 32 82 12.78 18 432 720
MHAE021-LC023 24x86 28 79 11.6 18 432 720
MHAE021-LC024 26x78 35 91 14.87 21.3 510 850
MHAE021-LC025 26x92 30 86 13.7 21.3 510 850
MHAE021-LC026 30x90 38 105 19.6 28.3 678 1130
MHAE021-LC027 30x108 34 98 18 28.3 678 1130
MHAE021-LC028 32x96 40 106 22.29 32.2 772 1286
Note:
We also can produce the non-standard or special lifting Chain according to the clients´requriment.
