ME Type Rubber Fender

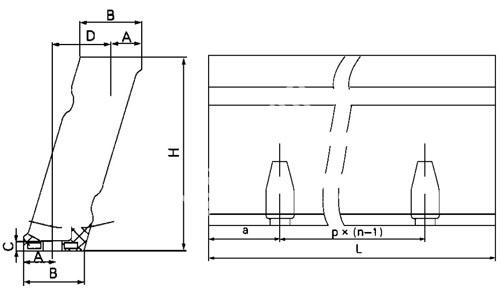

Product No. Size Main spec.(mm) Notes
H A B C D L a p n n size
MOME107-ME001 ME300 300 47 94 15 94 2000 250 500 4 M20 Products of
other sizes can be
manufactured
uponer's request
MOME107-ME002 ME400 400 63 125 17 124 2000 250 500 4 M24
MOME107-ME003 ME500 500 87 158 20 142 2000 250 500 4 M30
MOME107-ME004 ME550 550 87 172 20 170 2000 250 500 4 M30
MOME107-ME005 ME600 600 87 188 20 199 2000 250 500 4 M30
MOME107-ME006 ME750 750 118 235 26 230 2000 250 500 4 M36
MOME107-ME007 ME800 800 129 250 26 240 2000 250 500 4 M36
MOME107-ME008 ME1000 1000 162 322 31 310 2000 250 500 4 M42
MOME107-ME009 ME1250 1250 202 401 36 388 2000 250 500 4 M48
MOME107-ME010 ME1450 1450 228 454 41 454 2000 250 500 4 M48
MOME107-ME011 ME1600 1600 257 500 50 480 2000 250 500 4 M56

ME Type Rubber Fender
1.Low reaction force and high energy absorption.
2.The fender can be combined into different Types and size of fender system upon required performance
3.Optimum performance can be achieved at perpendicular or angular compression.
