DO Type Rubber Fender

Product No.

MOME107-DO001

MOME107-DO02

MOME107-DO03

MOME107-DO04

MOME107-DO05

MOME107-DO06

MOME107-DO07

MOME107-DO08

Item

DO100

DO150

DO200

DO250

DO300

DO350

DO400

DO500

H

90

150

200

250

300

350

400

500

B

100

150

200

250

300

350

400

500

D

45

55

55

65

65

85

85

97

d

25

27

30

32

36

40

42

45

h

30

50

35

62.5

75

87.5

100

125

W

50

80

100

125

150

175

200

250

Bolt Size

M22

M24

M26

M27

M30

M30

M38

M42

End distance

100-150

100-150

100-150

100-150

100-150

100-150

100-150

100-150

Bolt Pitch

350-440

350-440

325-600

325-450

325-600

350-600

350-600

400-620

Max.length(mm)

2000

2000

2000

3000

3000

3000

3000

3000

Reaction Force
(kN/m)

54.91

83.2

105.7

132.2

158.4

184.8

211.2

316.8

Energy Absorption
(Kn-M/m)

0.91

3.5

4.61

0.64

0.95

1.12

1.61

3.6

Deflection

40%

Weight(kg/m)

10

22

38

59

84

115

150

234

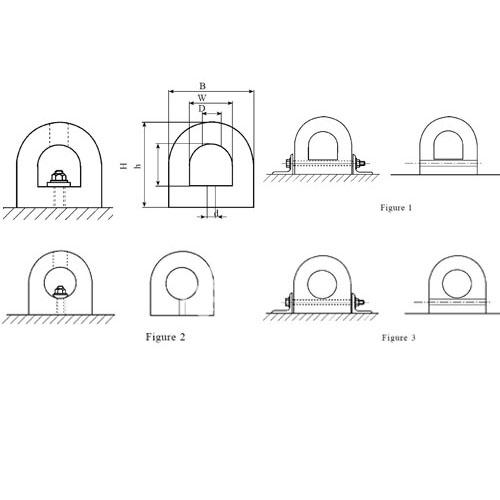

1.This Type of fender also can be installed as shown in figure1

2.The round holes is also avaiable as show in figure2&3

3.All the bolts in the same diameter

4.Production in accordance with stand
