Chain Accessories >> Delta Plate >> Delta Plate
|
|
 | |||||

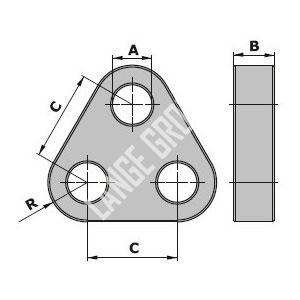

| Delta Plate | ||||||
| Product No. | SWL(T) | MBL(T) | A(mm) | B(mm) | C(mm) | R(MM) |
| MOME001-DP001 | 17 | 85 | 47 | 35 | 120 | 65 |
| MOME001-DP002 | 25 | 125 | 55 | 40 | 150 | 80 |
| MOME001-DP003 | 35 | 175 | 60 | 50 | 160 | 90 |
| MOME001-DP004 | 55 | 275 | 75 | 70 | 210 | 105 |
| MOME001-DP005 | 85 | 425 | 90 | 80 | 230 | 135 |
| MOME001-DP006 | 120 | 600 | 105 | 100 | 280 | 170 |
| MOME001-DP007 | 150 | 750 | 115 | 110 | 320 | 185 |
| MOME001-DP008 | 175 | 875 | 115 | 110 | 320 | 195 |
| MOME001-DP009 | 200 | 1000 | 140 | 120 | 390 | 215 |
| MOME001-DP010 | 250 | 1250 | 150 | 140 | 390 | 240 |
