Cutter Suction Dredger Equipment >> Cutting System >> Cutter Head >> Traditional Cutter Head TypeTraditional Cutter Head
 |
 |
||||||||||
|

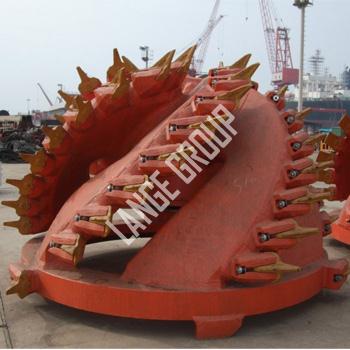

Cutter Head [Traditional Type] | |||||||||||
|
*Complete range | |||||||||||
|
*Up to 3000mm diameter | |||||||||||
|
*Up to 1400kW of cutting power | |||||||||||
|
*Refined tooth and cutting edge design | |||||||||||
|
*Lower maintenance costs | |||||||||||
|
*Material:30Mn-Mn13 | |||||||||||
|
Product No. |
Inner ring Dia. |
No.of blade |
Output torque |
Speed |
Max shaft power |
Suction Dia. |
Capacity | ||||
|
[mm] |
[KN*M] |
(rpm) |
(KW) |
(mm) |
(m3/h) | ||||||
|
MDRE080-CH101 |
830 |
5 |
9.7 |
0-34 |
35 |
250-300 |
200 | ||||
|
MDRE080-CH102 |
955 |
5 |
17 |
0-35 |
62 |
350-400 |
350 | ||||
|
MDRE080-CH103 |
955 |
5 |
21 |
0-30 |
66 |
350-400 |
350 | ||||
|
MDRE080-CH104 |
1330 |
5 |
32 |
0-30 |
101 |
400-450 |
650 | ||||
|
MDRE080-CH105 |
1550 |
5 |
56 |
0-30 |
176 |
500-550 |
900 | ||||
|
MDRE080-CH106 |
1750 |
5 |
75 |
0-32 |
251 |
600-650 |
1200 | ||||
|
MDRE080-CH107 |
1750 |
5 |
84 |
0-30 |
264 |
600-650 |
1200 | ||||
|
MDRE080-CH108 |
1750 |
5 |
90 |
0-24 |
226 |
600-650 |
1200 | ||||
|
MDRE080-CH109 |
1830 |
5 |
119 |
0-30 |
375 |
600-650 |
1600 | ||||
|
MDRE080-CH110 |
2000 |
5 |
175 |
0-30 |
550 |
650-700 |
1800 | ||||
|
MDRE080-CH111 |
2150 |
6 |
180 |
0-30 |
750 |
700-750 |
2000 | ||||
|
MDRE080-CH112 |
2260 |
6 |
286 |
0-30 |
900 |
800-850 |
3000 | ||||
|
MDRE080-CH113 |
2330 |
6 |
350 |
0-30 |
1100 |
850-900 |
4000 | ||||
|
MDRE080-CH114 |
2400 |
6 |
446 |
0-30 |
1400 |
900-950 |
4500 | ||||
|
There is a wide range of standard type cutter heads available for almost every size cutter dredger. We can also design the cutter head | |||||||||||
|
to the client's request. | |||||||||||
