QUICK RELEASE TOWING HOOK DISC Type

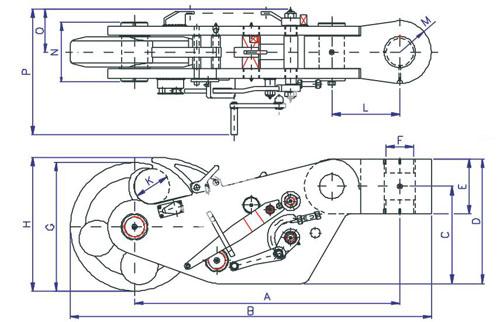

Product No.	Type	S.W.L.	T.L.	R.L.	Wt.	A	B	C	D	E	F	G	H	K	L	M	N	O	P
MOME108-DISC 001	DCX5/7	70	140	70	79	512	712	185	235	100	45	280	291	65	125	60	112	97	260
MOME108-DISC 002	DCX8/15	150	300	150	174	670	905	255	325	140	60	340	377	100	250	65	144	106	284
MOME108-DISC 003	DCX18/25	250	500	250	414	923	1238	355	445	180	80	470	491	130	200	81	186	124	427
MOME108-DISC 004	DCX30/45	450	900	450	534	973	1323	355	455	200	100	470	190	130	200	115	218	158	462
MOME108-DISC 005	DCX50/65	650	1300	650	918	1173	1598	454	464	220	110	600	608	162	250	125	256	173	487
MOME108-DISC 006	DCX70/100	1000	1500	1000	1282	1068	1750	492	632	280	135	650	668	176	290	135	288	182	530
