Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7354JIS F7354 5K Marine Cast Iron Screw Down Check Angle Valve
 |
 | |||||||
| Product Name | JIS F7354 5K Marine Cast Iron Screw Down Check Angle Valve | |||||||

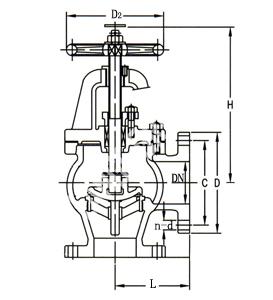

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJFK4-JIS051 | 50 | 100 | 130 | 105 | 4-15 | 16 | 240 | 160 |
| MFVEJFK4-JIS052 | 65 | 115 | 155 | 130 | 4-15 | 18 | 255 | 180 |
| MFVEJFK4-JIS053 | 80 | 130 | 180 | 145 | 4-19 | 18 | 265 | 180 |
| MFVEJFK4-JIS054 | 100 | 150 | 200 | 165 | 8-19 | 20 | 310 | 224 |
| MFVEJFK4-JIS055 | 125 | 170 | 235 | 200 | 8-19 | 20 | 330 | 250 |
| MFVEJFK4-JIS056 | 150 | 190 | 265 | 230 | 8-19 | 22 | 380 | 280 |
| MFVEJFK4-JIS057 | 200 | 220 | 320 | 280 | 8-23 | 24 | 450 | 315 |
| MFVEJFK4-JIS058 | 250 | 275 | 385 | 345 | 12-23 | 26 | 540 | 355 |
| MFVEJFK4-JIS059 | 300 | 310 | 430 | 390 | 12-23 | 28 | 610 | 400 |
| * Click here to contact me for more technical details | ||||||||
