Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7410JIS F7410 16K Marine Bronze Screw Down Check Angle Valve
 |
 | ||||||||
| Product Name | JIS F7410 16K Marine Bronze Screw Down Check Angle Valve | ||||||||

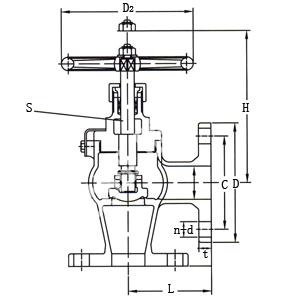

| Product No | DN | L | H | D | C | t | n-d | D2 | S |
| MFVEJFT4-JIS051 | 15 | 70 | 120 | 95 | 70 | 12 | 4-15 | 80 | 8 |
| MFVEJFT4-JIS052 | 20 | 75 | 125 | 100 | 75 | 14 | 4-15 | 100 | 10 |
| MFVEJFT4-JIS053 | 25 | 85 | 140 | 125 | 90 | 14 | 4-15 | 125 | 10 |
| MFVEJFT4-JIS054 | 32 | 90 | 145 | 135 | 100 | 16 | 4-15 | 125 | 10 |
| MFVEJFT4-JIS055 | 40 | 100 | 160 | 140 | 105 | 16 | 4-15 | 140 | 12 |
| * Click here to contact me for more technical details | |||||||||
