Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7352JIS F7352 5K Marine Bronze Screw Down Check Angle Valve
 |
 | |||||||||

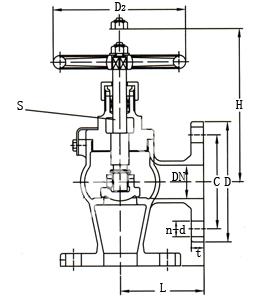

| Product Name | JIS F7352 5K Marine Bronze Screw Down Check Angle Valve | |||||||||
| Product No | DN | L | H | D | C | t | n-d | D2 | S | |
| MFVEJFT4-JIS041 | 15 | 55 | 120 | 80 | 60 | 9 | 4-12 | 80 | 8 | |
| MFVEJFT4-JIS042 | 20 | 60 | 130 | 85 | 65 | 10 | 4-12 | 100 | 10 | |
| MFVEJFT4-JIS043 | 25 | 65 | 145 | 95 | 75 | 10 | 4-12 | 125 | 10 | |
| MFVEJFT4-JIS044 | 32 | 80 | 150 | 115 | 90 | 12 | 4-15 | 125 | 10 | |
| MFVEJFT4-JIS045 | 40 | 85 | 165 | 120 | 95 | 12 | 4-15 | 140 | 12 | |
| MFVEJFT4-JIS046 | 50 | 100 | 200 | 130 | 105 | 14 | 4-15 | 140 | 12 | |
| MFVEJFT4-JIS047 | 65 | 115 | 220 | 155 | 130 | 14 | 4-15 | 160 | 14 | |
