Kidney Bollards | |||||||||
|

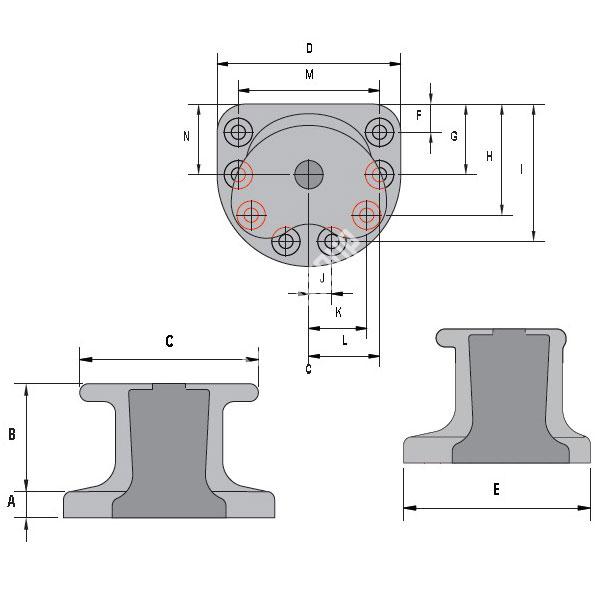

Dimensions(mm) |
Standard Bollard Capacity(Metric Tonnes) | ||||||||
|
MOME009-K15 |
MOME009-K20 |
MOME009-K30 |
MOME009-K50 |
MOME009-K75 |
MOME009-K100 |
MOME009-K125 |
MOME009-K150 |
MOME009-K200 | |
|
A |
41 |
51 |
54 |
60 |
70 |
79 |
89 |
95 |
111 |
|
B |
194 |
216 |
257 |
264 |
298 |
340 |
375 |
410 |
457 |
|
C |
275 |
330 |
385 |
413 |
481 |
550 |
605 |
660 |
759 |
|
D |
325 |
390 |
455 |
488 |
569 |
650 |
715 |
780 |
897 |
|
E |
288 |
345 |
402 |
431 |
503 |
575 |
632 |
690 |
793 |
|
F |
50 |
60 |
70 |
75 |
88 |
100 |
110 |
120 |
138 |
|
G |
238 |
272 |
299 |
326 |
345 | ||||
|
H |
213 |
258 |
226 |
381 |
436 |
479 |
523 |
543 | |
|
I |
213 |
300 |
350 |
353 |
438 |
500 |
550 |
600 |
671 |
|
J |
88 |
0 |
0 |
88 |
0 |
0 |
0 |
0 |
112 |
|
K |
136 |
154 |
183 |
146 |
167 |
184 |
201 |
283 | |
|
L |
218 |
249 |
274 |
299 |
345 | ||||
|
M |
250 |
300 |
350 |
375 |
438 |
500 |
550 |
600 |
690 |
|
N |
125 |
150 |
175 |
188 |
219 |
250 |
275 |
300 |
345 |
|
Bolt Size |
M24 |
M24 |
M30 |
M36 |
M36 |
M42 |
M48 |
M56 |
M56 |
|
Bolt Length |
450 |
450 |
450 |
600 |
600 |
600 |
750 |
915 |
915 |
|
Bolt Qty |
4 |
5 |
5 |
6 |
7 |
7 |
7 |
7 |
8 |
