Hydraulic Retractable Fin Stabilizer >> Type F Retractable Fin Stabilizer >> Type F Retractable Fin Stabilizers
Product Name Type F Retractable Fin Stabilizers

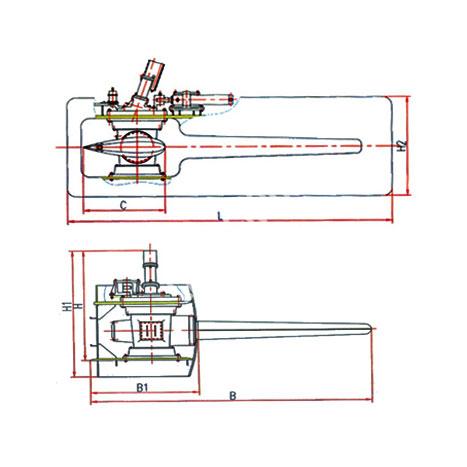

Product No. Area Displacement Sea Condition Power Weight Externality Size(mm)
�O T H1/3 (m) kw/Pair t/Pair L H2 H1 H B B1 C
MFST070-FR001 2 1800 5/3.5 37 18 4650 1560 2320 2000 3700 1600 1000
MFST070-FR002 3 1800-3000 6/4.0 37 24.6 5450 1760 2650 2333 4380 1820 1225
MFST070-FR003 4 3000-4000 6/4.0 37 34.2 6240 1960 2996 2665 5090 2130 1414
MFST070-FR004 5 4000-5500 6/5.0 60 47.9 6675 1760 2980 2705 5610 2480 1580
MFST070-FR005 6 5500-7500 6/5.0 60 62 7400 2280 3347 3044 6150 2660 1732
MFST070-FR006 7 7500-10000 6/<6 60 66.4 7670 2280 3347 3044 6440 2660 1870
MFST070-FR007 8 10000-14000 6/<6 90 87.5 8460 2550 3820 3472 7130 2980 2000
