Marine Valves >> JIS Marine Valves >> Hose Valves >> JIS F7334JIS F7334A 10K Marine Bronze Angle Hose Valve

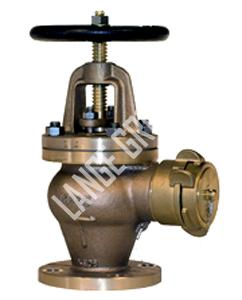

Product Name	JIS F7334A 10K Marine Bronze Angle Hose Valve

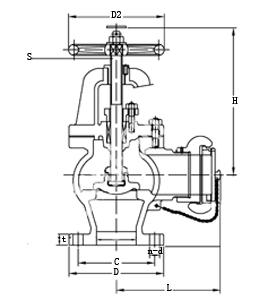

Product No	DN	L	D	C	t	n-d	H	D2	S
MFVEJFT2-JIS031	15	73	95	70	12	4-15	120	80	8
MFVEJFT2-JIS032	25	83	125	90	14	4-19	145	125	10
MFVEJFT2-JIS033	40	124	140	105	16	4-19	165	140	12
MFVEJFT2-JIS034	50	160	155	120	16	4-19	240	160	14
MFVEJFT2-JIS035	65	180	175	140	18	4-19	255	200	17

* Click here to contact me for more technical details
