Mooring Chock >> Bulwark Mounted Chock >> Panama Chock >> Bulwark Mounted Chock DIN81915 Type ABulwark Mounted Chock DIN81915 Type A

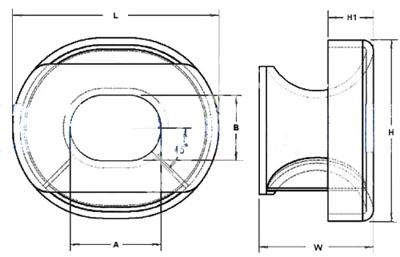

Bulwark Mounted Chock DIN81915 Type A
Product No.	SWL(KN)	Dimension(mm)						Mass(kgs)
		L	W	H	H1	A	B
MOME103-DINA001	20	360	200	315	70	160	115	30
MOME103-DINA002	30	450	250	390	750	200	140	50
MOME103-DINA003	50	550	300	480	80	250	180	85
MOME103-DINA004	80	680	360	585	90	320	225	140
MOME103-DINA005	125	840	440	710	110	400	270	210
MOME103-DINA006	200	1020	520	840	130	500	320	320
MOME103-DINA007	320	1300	700	1100	150	600	400	800
