Marine Valves >> JIS Marine Valves >> Hose Valves >> JIS F7334JIS F7334A 5K Marine Bronze Angle Hose Valve
 |
 | ||||||||

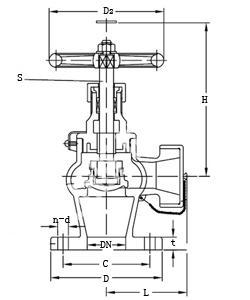

| Product Name | JIS F7334A 5K Marine Bronze Angle Hose Valve | ||||||||
| Product No | DN | L | D | C | t | n-d | H | D2 | S |
| MFVEJFT2-JIS011 | 15 | 68 | 80 | 60 | 9 | 4-12 | 120 | 80 | 8 |
| MFVEJFT2-JIS012 | 25 | 78 | 95 | 75 | 10 | 4-12 | 145 | 125 | 10 |
| MFVEJFT2-JIS013 | 40 | 124 | 120 | 95 | 12 | 4-15 | 165 | 140 | 12 |
| MFVEJFT2-JIS014 | 50 | 155 | 130 | 105 | 14 | 4-15 | 255 | 160 | 14 |
