Marine Steering Gear System >> Steering Gear >> Rotary Vane Type >> Conventional TypeMarine Steering Gear-Rotary Vane Type (Commonly Used Type)
  | ||||
|
Product Name |
Rotary Vane Type Steering Gear (Conventional Type) | |||
|
Standards |
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989 | |||
|
Max. Mech. Rudder Angle |
+- 65 Degrees | |||
|
Time Of Rudder Movement |
¡Ü20 S | |||
|
Product No. |

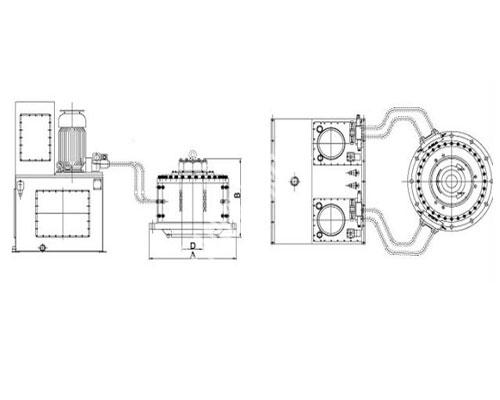

Working torque (kN.m) | A (mm) | B (mm) | D (mm) |
|
MDEE060-RM01 |
25-32 | 400 | 360 | ¡Ü140 |
|
MDEE060-RM02 |
49-63 | 560 | 400 | ¡Ü165 |
|
MDEE060-RM03 |
75-125 | 1050 | 766 | ¡Ü180 |
|
MDEE060-RM04 |
180-200 | 1050 | 866 | ¡Ü250 |
|
MDEE060-RM05 |
250-320 | 1250 | 955 | ¡Ü300 |
|
MDEE060-RM06 |
350-450 | 1350 | 1165 | ¡Ü340 |
|
Componets |
One rotary vane actuating system, two oil pump and motor power units, one oil tank, and other component. | |||
|
Control mode |
Electronic control, pump control | |||
|
Suitable operation system |
Follow up system, non-follow up system autopilot system | |||
|
Vessel |
Inland vessel, coastal vessel. | |||
|
Main Benefits |
Easy to install, unique sealing system, long life time bearing and seal cycle, less space, angle up to 2x65degree | |||
