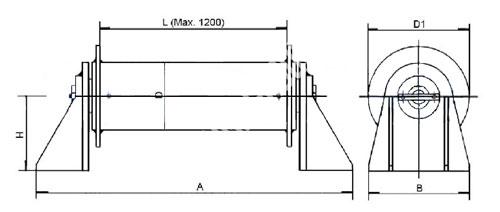

| Crossover Fairlead | |||||||
| Product No. | Nominal Diameter | Dimensions(mm) | |||||
| mm | inch | D | D1 | H | A | B | |
| MOME102-CF001 | 200 | 8 | 203 | 305 | 220 | L+380 | 300 |
| MOME102-CF002 | 250 | 10 | 245 | 381 | 275 | L+475 | 375 |
| MOME102-CF003 | 300 | 12 | 299 | 457 | 330 | L+570 | 450 |
| MOME102-CF004 | 350 | 14 | 351 | 533 | 385 | L+665 | 575 |
| MOME102-CF005 | 410 | 16 | 402 | 610 | 440 | L+760 | 600 |
