Marine Valves >> JIS Marine Valves >> Hose Valves >> JIS F7333JIS F7333A 5K/10K Marine Cast Iron Angle Hose Valve
 |
 | |||||||
| Product Name | JIS F7333A 5K/10K Marine Cast Iron Angle Hose Valve | |||||||

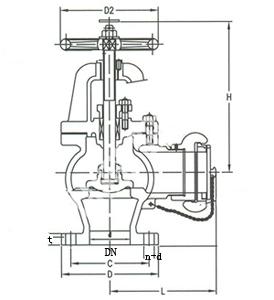

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJK4-JIS031 | 5K-50 | 155 | 130 | 105 | 4-15 | 16 | 240 | 160 |
| MFVEJK4-JIS032 | 10K-50 | 170 | 155 | 120 | 4-19 | 20 | 255 | 160 |
| MFVEJK4-JIS033 | 10K-65 | 200 | 175 | 140 | 4-19 | 22 | 270 | 200 |
