Marine Steering Gear System >> Steering Gear >> Oscillating Cylinders Type >> Four Oscillating CylinderMarine Steering Gear-Four Oscillating Cylinder Type
  | |||||||
|
Product Name |
Oscillating Cylinder Type Steering Gear (Four Cylinders) | ||||||
|
Standards |
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989 | ||||||
|
Max. Mech. Rudder Angle |
+- 45 Degrees | ||||||
|
Time Of Rudder Movement |
¡¶20 S | ||||||
|
Working Pressure |
14Mpa-18Mpa | ||||||
|
Design Pressure |
17.5Mpa-22.5Mpa | ||||||
|
Product No. |

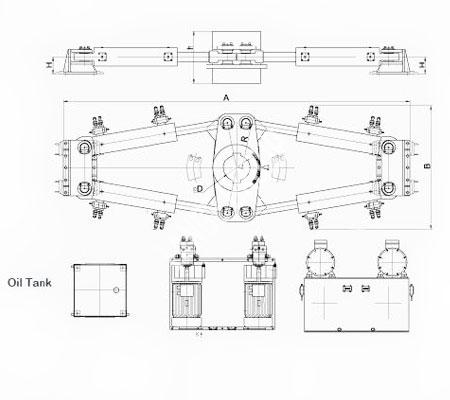

Working Torque | A | B | R | H | h | D |
| (kN.m) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
|
MDEE060-OCF01 |
400-650 | 4000 | 1530 | 650 | 200 | 600 | ¡¶420 |
|
MDEE060-OCF02 |
700-900 | 5296 | 1900 | 700 | 260 | 900 | ¡¶460 |
|
MDEE060-OCF03 |
1000 | 5480 | 2000 | 720 | 260 | 1000 | ¡¶480 |
|
Componets |
Four ocsillating type cylinders actuating system(using in couple is available), two oil pump and motor power units, one oil tank, and other components. | ||||||
|
Control mode |
Valve control, electronic control, pump control | ||||||
|
Suitable operation system |
Follow up system, non-follow up system autopilot system (Ele-cotrol system) | ||||||
|
Vessel |
Containers, tankers, ferries, cargo ships,large ocean vessels, chemical carrier, any other vessels that need high demand of safety | ||||||
|
Main Benefits |
Compact dimensions with low height, for rudder angle up to +/45degrees, simple assembling and maintenance, simple and safe operation,can be interfaced with all steeringcontrols and autopilot systems, in emergency, each actuator can ensure the manoeuvrability of the vessel | ||||||
