Mooring Cleat >> Pull Up Cleats >> Pull Up Cleat Type-3
|
|
| |||||||||

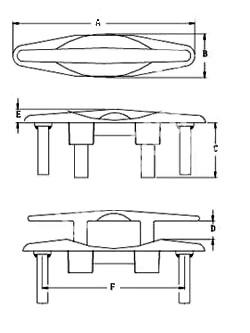

| Pull Up Cleat Type-3 | ||||||||||
| Product No. | Dimension(mm) | Weight(kg) | ||||||||
| A | B | C | D | E | F | Thread Dia | Stud Length | Max Line Size | ||
| MOME005-PUC3001 | 127 | 33 | 64 | 14 | 8.6 | 95.3 | 7.9 | 41.3 | 12.7 | 0.27 |
| MOME005-PUC3002 | 173 | 38.1 | 76.2 | 17.8 | 12.7 | 125.7 | 9.5 | 47.6 | 15.8 | 0.45 |
| MOME005-PUC3003 | 229 | 51 | 94 | 25.4 | 17 | 154.2 | 9.5 | 66.7 | 19.1 | 1.02 |
| MOME005-PUC3004 | 257 | 71.1 | 121.9 | 25.4 | 20.6 | 190.5 | 12.7 | 76.2 | 25.4 | 2.08 |
