Marine Steering Gear System >> Steering Gear >> Oscillating Cylinders Type >> Two Oscillating CylinderMarine Steering Gear-Two Oscillating Cylinder Type
  | |||||||
|
Product Name |
Oscillating Cylinder Type Steering Gear (Two Cylinders) | ||||||
|
Standards |
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989 | ||||||
|
Max. Mech. Rudder Angle |
+- 45 Degrees | ||||||
|
Time Of Rudder Movement |
¡¶20 S | ||||||
|
Working Pressure |
4.5Mpa-20.5Mpa | ||||||
|
Design Pressure |
5.6Mpa-25.6Mpa | ||||||
|
Product No. |

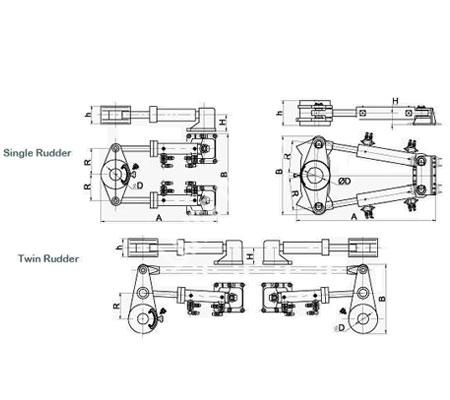

Working Torque | A | B | R | H | h | D |
| (kN.m) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
|
MDEE060-OST01 |
8-12 | 970 | 500 | 200 | 110 | 1010 | ¡¶130 |
|
MDEE060-OST02 |
16-25 | 1269 | 700 | 300 | 110 | 1040 | ¡¶160 |
|
MDEE060-OST03 |
30-40 | 1170 | 790 | 320 | 115 | 1053 | ¡¶160 |
|
MDEE060-OST04 |
50-63 | 1420 | 940 | 420 | 145 | 1070 | ¡¶180 |
|
MDEE060-OST05 |
75-125 | 1700 | 1080 | 500 | 145 | 1010 | ¡¶200 |
|
MDEE060-OST06 |
160-250 | 2250 | 1440 | 650 | 200 | 1040 | ¡¶280 |
|
MDEE060-OST07 |
300-450 | 3100 | 1800 | 700 | 260 | 1053 | ¡¶340 |
|
MDEE060-OST08 |
500 | 3500 | 1900 | 720 | 260 | 1070 | ¡¶360 |
|
Componets |
Two ocsillating type cylinders actuating system, two oil pump and motor power units, one oil tank, one emergency oil pump with a accumulator or a DC motor(for inland jet stream area use) and other components. | ||||||
|
Control mode |
Valve control, electronic control, pump control | ||||||
|
Suitable operation system |
Follow up system, non-follow up system autopilot system (Ele-cotrol system) | ||||||
|
Vessel |
Inland vessel,coastal vessel | ||||||
|
Main Benefits |
Compact dimensions with low height, for rudder angle up to +/- 45 degrees, simple assembling and maintenance, simple and safe operation,can be interfaced with all steeringcontrols and autopilot systems, in emergency, each actuator can ensure the manoeuvrability of the vessel | ||||||
