Marine Valves >> JIS Marine Valves >> Hose Valves >> JIS F7334JIS F7334 10K Marine Bronze Globe Hose Valve
 |
 | ||||||||

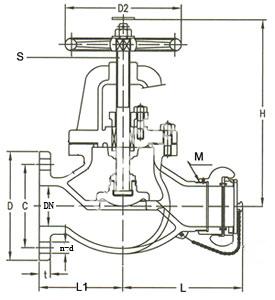

| Product Name | JIS F7334 10K Marine Bronze Globe Hose Valve | ||||||||
| Product No. | DN | L | D | C | t | n-d | H | D2 | S |
| MFVEJT4-JIS049 | 15 | 73 | 95 | 70 | 12 | 4-15 | 130 | 80 | 8 |
| MFVEJT4-JIS050 | 25 | 83 | 125 | 90 | 14 | 4-15 | 160 | 125 | 10 |
| MFVEJT4-JIS051 | 40 | 133 | 140 | 105 | 16 | 4-19 | 190 | 140 | 12 |
| MFVEJT4-JIS052 | 50 | 165 | 155 | 120 | 16 | 4-19 | 270 | 160 | 14 |
| MFVEJT4-JIS053 | 65 | 200 | 175 | 140 | 18 | 4-19 | 295 | 200 | 17 |
