Marine Valves >> JIS Marine Valves >> Storm Valves >> JIS F3060JIS F3060 5K Marine Cast Steel Down Storm Valve
 |
 | |||||

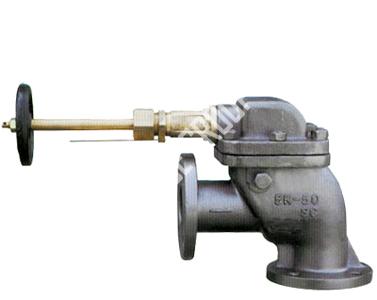

| Product Name | JIS F3060 5K Marine Cast Steel Down Storm Valve | |||||

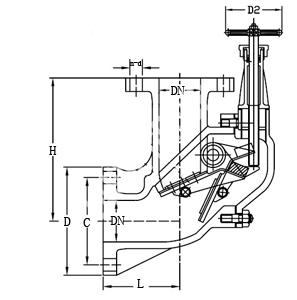

| Product No | DN | L | D | C | n-d | H |
| MFVEFLC4-JIS021 | 50 | 170 | 130 | 105 | 4-15 | 131 |
| MFVEFLC4-JIS022 | 65 | 190 | 155 | 130 | 4-15 | 141 |
| MFVEFLC4-JIS023 | 80 | 220 | 180 | 145 | 4-19 | 155 |
| MFVEFLC4-JIS024 | 100 | 250 | 200 | 165 | 4-19 | 171 |
| MFVEFLC4-JIS025 | 125 | 270 | 235 | 200 | 4-19 | 195 |
| MFVEFLC4-JIS026 | 150 | 340 | 265 | 230 | 8-19 | 212 |
