Mooring Cleat >> Open Cleats >> Hollow Base Cleat
|
|
| ||||||

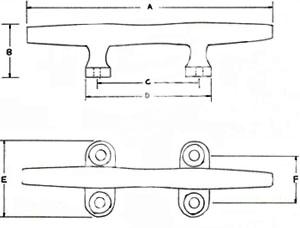

| Hollow Base Cleat | |||||||
| Procuct No. | Dimension(mm) | Diameter of hole(mm) | |||||
| A | B | C | D | E | F | ||
| MOME005-HBC001 | 101 | 23 | 45 | 60 | 39 | 25 | 5 |
| MOME005-HBC002 | 152 | 30 | 57 | 74 | 45 | 29 | 6 |
| MOME005-HBC003 | 203 | 36 | 71 | 89 | 53 | 34 | 6 |
| MOME005-HBC004 | 252 | 44 | 93 | 114 | 66 | 45 | 8 |
| MOME005-HBC005 | 302 | 50 | 98 | 120 | 70 | 48 | 8 |
| MOME005-HBC006 | 377 | 90 | 124 | 155 | 98 | 65 | 12 |
| MOME005-HBC007 | 454 | 95 | 150 | 182 | 98 | 68 | 12 |
