Quick Release Mooring Hook >> Quardruple Hook >> Quardruple Hook Assembly
|
|
| |||||||||||||||||||||
|

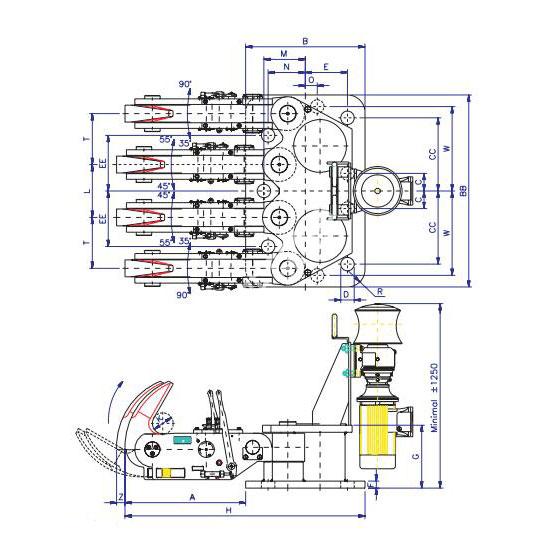

QUADRUPLE HOOK ASSEMBLY | ||||||||||||||||||||||
|
Product No. |
S.W.L. |
Cap. |
Wt. |
A |
B |
BB |
C |
CC |
D |
E |
EE |
F |
G |
H |
K |
L |
M |
N |
R |
T |
Z |
X |
|
MOME108-QH001 |
400 |
1600 |
928 |
578 |
650 |
1120 |
100 |
470 |
70 |
235 |
300 |
35 |
370 |
1228 |
96 |
300 |
235 |
235 |
90 |
300 |
40 |
7*M647 |
|
MOME108-QH002 |
600 |
2400 |
1670 |
778 |
750 |
1185 |
115 |
445 |
78 |
275 |
330 |
45 |
407 |
1528 |
130 |
325 |
255 |
230 |
100 |
320 |
56 |
7*M72 |
|
MOME108-QH003 |
750 |
3000 |
2032 |
823 |
800 |
1300 |
150 |
505 |
86 |
290 |
355 |
45 |
417 |
1623 |
130 |
350 |
280 |
265 |
100 |
340 |
50 |
7*M80 |
|
MOME108-QH004 |
1000 |
4000 |
2807 |
859 |
850 |
1365 |
125 |
520 |
96 |
300 |
395 |
50 |
447 |
1709 |
150 |
376 |
295 |
265 |
125 |
362 |
60 |
7*M90 |
|
MOME108-QH005 |
1250 |
5000 |
3199 |
930 |
850 |
1365 |
125 |
520 |
96 |
300 |
395 |
55 |
479 |
1780 |
150 |
376 |
295 |
265 |
125 |
362 |
60 |
7*M90 |
|
MOME108-QH006 |
1500 |
6000 |
4698 |
1118 |
925 |
1570 |
170 |
605 |
86 |
325 |
435 |
55 |
499 |
2043 |
150 |
426 |
325 |
280 |
135 |
415 |
60 |
9*M80 |
