Quick Release Mooring Hook >> Single Hook >> Single Hook Assembly

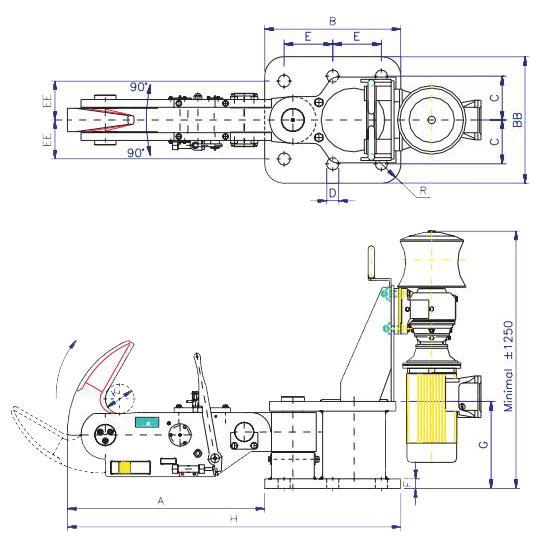

SINGLE HOOK ASSEMBLY
Product  No. S.W.L. Cap. Wt. A B BB C D E EE F G H K R X
MOME108-SH001 400 400 304 668 600 600 225 54 225 225 35 370 1268 96 75 4*M48
MOME108-SH002 600 600 512 873 650 650 235 54 235 200 45 407 1523 130 90 6*M48
MOME108-SH003 750 750 587 923 650 650 225 62 225 200 45 417 1573 130 100 6*M56
MOME108-SH004 1000 1000 792 1014 700 650 225 62 250 200 50 447 1714 150 100 6*M56
MOME108-SH005 1250 1250 887 1085 700 650 225 70 250 200 55 479 1785 150 100 6*M64
MOME108-SH006 1500 1500 1253 1255 700 650 225 78 250 195 55 499 1955 150 100 6*M72
