Mooring Cleat >> Open Cleats >> Dock Cleat
|
|
| |||||||||||

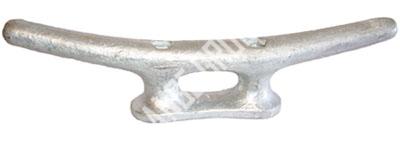

| Dock Cleat | ||||||||||||
| Product No. | Dimension(mm) | Weight(kg) | ||||||||||
| A | B | C | D | E | F | G | H | I | J | K | ||
| MOME005-DC001 | 610 | 76 | 190 | 101 | 143 | 130 | 57 | 83 | 229 | 267 | 13 | 23 |
| MOME005-DC002 | 762 | 83 | 241 | 101 | 178 | 143 | 60 | 175 | 356 | 514 | 13 | 34 |
| MOME005-DC003 | 914 | 101 | 279 | 127 | 203 | 171 | 83 | 210 | 432 | 597 | 14 | 44 |
| MOME005-DC004 | 1066 | 121 | 318 | 152 | 229 | 200 | 105 | 245 | 508 | 679 | 13 | 76 |
| MOME005-DC005 | 1219 | 140 | 356 | 178 | 254 | 229 | 127 | 279 | 584 | 762 | 17 | 100 |
