Product Name

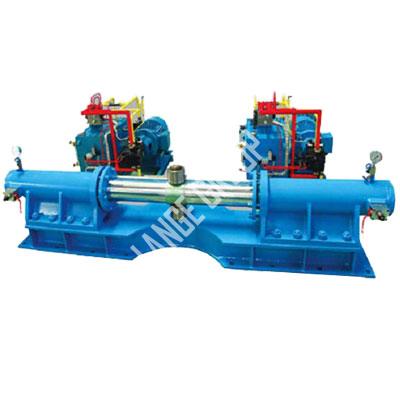

1-Ram-2-Cyliner Fork Type Steering Gear(Single Rudder)
Standards
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989
Max. Mech. Rudder Angle
+- 45 Degrees
Time Of Rudder Movement
¡¶20 S
Working Pressure
8Mpa-17Mpa
Design Pressure
15Mpa20Mpa
Product No.

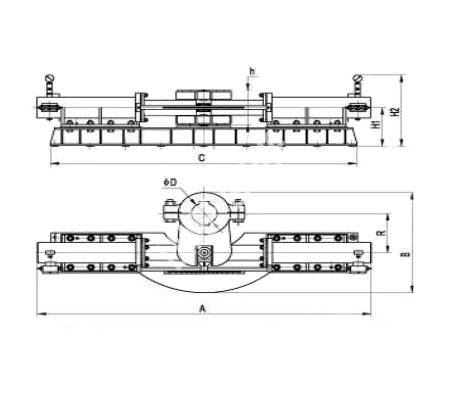

 Working Torque A B C H1 H2 h D R
(kN.m) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MDEE060-FTS01
 10-16 1470 490 1280 280 510 215 ¡¶125 180
MDEE060-FTS02
 20-40 1870 615 1480 320 560 260 ¡¶165 240
MDEE060-FTS03
 50-63 2238 706 2000 360 631 320 ¡¶180 300
MDEE060-FTS04
 75-125 2498 925 2460 380 734 345 ¡¶250 350
MDEE060-FTS05
 160-200 2956 1065 2830 380 1010 345 ¡¶300 450
MDEE060-FTS06
 250-320 3610 1296 3400 560 1040 500 ¡¶340 500
MDEE060-FTS07
 350-400 3914 1456 3600 560 1053 500 ¡¶340 570
MDEE060-FTS08
 450-500 4300 1550 3800 560 1070 570 ¡¶360 600
Componets
One fork type actuating system, two oil pump and motor power units, one oil tank, relief valve, by-pass valve and other components.
Control mode
Valve control, pump control
Suitable operation system
Follow up system, non-follow up system autopilot system
Vessel
Inland vessel,coastal vessel
Main Benefits
Compact design,lower costs, simple installation, simple maintenance, well performance in sealing, multiple interfacing with monitoring and autopilot systems, proven perfect performance in all conditions
Product Name
1-Ram-2-Cyliner Fork Type Steering Gear(Two Rudders)
Standards
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989
Max. Mech. Rudder Angle
+- 45 Degrees
Time Of Rudder Movement
¡¶20 S
Working Pressure
8Mpa-17Mpa
Design Pressure
15Mpa-20Mpa
Product No.

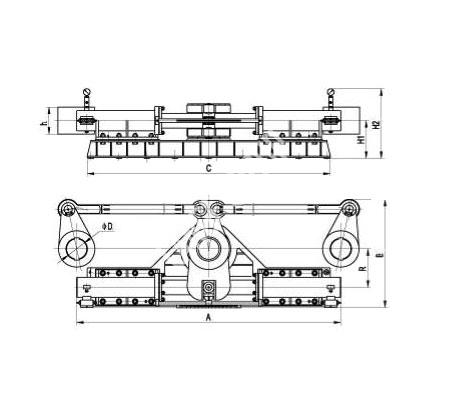

 Working Torque A B C H1 H2 h D R
(kN.m) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MDEE060-FTT01
 10-16 1470 490 1280 280 510 180 ¡¶100 180
MDEE060-FTT02
 20-40 1870 615 1480 320 560 180 ¡¶140 240
MDEE060-FTT03
 50-63 2238 706 2000 360 631 180 ¡¶140 300
MDEE060-FTT04
 75-125 2498 925 2460 380 734 280 ¡¶250 350
MDEE060-FTT05
 160-200 2956 1065 2830 380 1010 310 ¡¶250 450
MDEE060-FTT06
 250-320 3610 1296 3400 560 1040 400 ¡¶300 500
MDEE060-FTT07
 350-400 3914 1456 3600 560 1053 400 ¡¶320 570
MDEE060-FTT08
 450-500 4300 1550 3800 560 1070 450 ¡¶340 600
Componets
One fork type actuating system, two oil pump and motor power units, one oil tank, relief valve, by-pass valve and other components.
Control mode
Valve control, pump control
Suitable operation system
Follow up system, non-follow up system autopilot system
Vessel
Inland vessel,coastal vessel
Main Benefits
Compact design,lower costs, simple installation, simple maintenance, well performance in sealing, multiple interfacing with monitoring and autopilot systems, proven perfect performance in all conditions
