Warping Roller >> Roller With Pedestal >> Roller With Pedestal
| กก
|
กก
| |||||||||
|

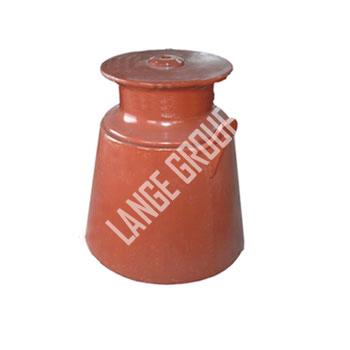

ROLLER WITH PEDESTAL | ||||||||||
|
Product |
Model |
Units of |
Maximum |
Wire Breaking |

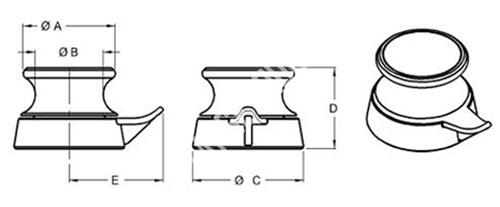

A |
B |
C |
D |
E |
Weight |
|
MOME102-001 |
PFH-10 |
Inches |
3/4 |
58,800Ibs |
14 |
10 |
18 |
16 |
15 |
300Ibs |
|
MM |
19 |
262KN |
356 |
254 |
457 |
406 |
381 |
136Kg | ||
|
MOME102-002 |
PFH-12 |
Inches |
1 |
103,400Ibs |
16 |
12 |
20 |
16 |
16 |
350Ibs |
|
MM |
25 |
460KN |
406 |
305 |
508 |
406 |
406 |
159Kg | ||
|
MOME102-003 |
PFH-14 |
Inches |
1- 3/8 |
192,000Ibs |
19 |
14 |
23 |
16-3/4 |
2019-5-16 |
480Ibs |
|
MM |
35 |
854KN |
483 |
356 |
584 |
425 |
491 |
218Kg | ||
|
MOME102-004 |
PFH-16 |
Inches |
1- 3/8 |
192,000Ibs |
20- 1/2 |
16 |
24 |
18- 1/4 |
19- 13/16 |
600Ibs |
|
MM |
35 |
854KN |
521 |
406 |
610 |
464 |
503 |
272Kg | ||
|
MOME102-005 |
PFH-18 |
Inches |
1- 1/2 |
228,000Ibs |
24 |
18 |
28 |
19 |
21 |
890Ibs |
|
MM |
38 |
1014KN |
610 |
457 |
711 |
483 |
533 |
404KG | ||
|
MOME102-006 |
PFH-24 |
Inches |
2 |
396,000Ibs |
30 |
24 |
36 |
27 |
24- 1/2 |
1700Ibs |
|
MM |
51 |
1762KN |
762 |
610 |
914 |
686 |
622 |
771Kg | ||
