Product Name |

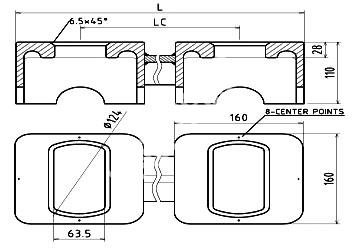

Double Raised Foundation (Casting Type) | ||
|
Material |
Heat treatable steel | ||
|
Min.Breaking Loads Tension |
500KN | ||
|
Shear |
420KN | ||
|
Min.Breaking Loads Compression |
2000KN | ||
|
Finish |
Weldable shop primer | ||
|
Certification |
All items are approved by major classification societies | ||
|
Product No. |
LC(mm) | L(mm) | Weight(kg) |
|
MHAE221-CD001 |
203 | 363 | 14.6 |
|
MHAE221-CD002 |
216 | 376 | 14.7 |
|
MHAE221-CD003 |
258 | 418 | 15.3 |
|
Remark |
1.Centre marking for easy installation | ||
|
2.We can produce the products according to your request. | |||
