Products Name |
Double Raised Foundation (Welding Type) | |||
|
Material |
Casting steel or ship building steel | |||
|
Min.Breaking Loads Tension |
500KN | |||
|
Shear |
420KN | |||
|
Min.Breaking Loads Compression |
2000KN | |||
|
Finish |
Weldable shop primer | |||
|
Certification |
All items are approved by major classification societies | |||

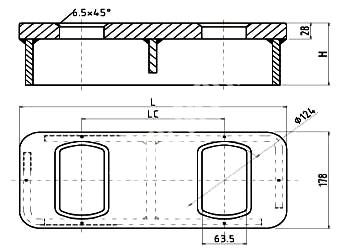

| Dimension | ||||
|
Product No. |
LC(mm) | L(mm) | H(mm) | Weight(kg) |
|
MHAE221-WD001 |
203 | 381 | 110 | 18.1 |
|
MHAE221-WD002 |
216 | 394 | 110 | 18.6 |
|
MHAE221-WD003 |
258 | 436 | 110 | 19.5 |
|
MHAE221-WD004 |
203 | 381 | 135 | 19.2 |
|
MHAE221-WD005 |
216 | 394 | 135 | 19.7 |
|
MHAE221-WD006 |
258 | 436 | 135 | 20.6 |
|
MHAE221-WD007 |
203 | 381 | 150 | 19.9 |
|
MHAE221-WD008 |
216 | 394 | 150 | 20.4 |
|
MHAE221-WD009 |
258 | 436 | 150 | 21.3 |
|
Remark | ||||
|
1.Centre marking for easy installation 2.We can produce the products according to your request. | ||||
