Chain Stopper >> JIS F-2032 Roller Pawl Type Chain Stoppe >> JIS F-2032 Roller Pawl Type Chain Stopper
|
| |||||||||||

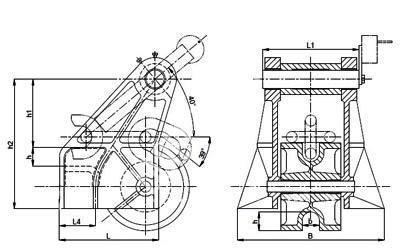

| JIS F-2031 Cast Steel Roller Pawl Type Chain Stopper | |||||||||||
| Product No. | Dimensions(mm) | ||||||||||
| Nominal Chain Dia.(mm) | h | h1 | h2 | L | L1 | L4 | B | b | D |
Weight (kg) | |
| MOME004-CSR001 | 70-73 | 125 | 422 | 860 | 660 | 640 | 241 | 980 | 115 | 584 | 1096 |
| MOME004-CSR002 | 76-78 | 133 | 450 | 918 | 700 | 680 | 254 | 1046 | 123 | 624 | 1316 |
| MOME004-CSR003 | 81-84 | 143 | 483 | 983 | 760 | 720 | 279 | 1110 | 134 | 672 | 1608 |
| MOME004-CSR004 | 87-90 | 153 | 515 | 1055 | 810 | 770 | 295 | 1190 | 143 | 720 | 1938 |
| MOME004-CSR005 | 92-95 | 162 | 545 | 1115 | 860 | 810 | 317 | 1250 | 151 | 760 | 2286 |
| MOME004-CSR006 | 97-102 | 175 | 584 | 1195 | 920 | 860 | 337 | 1320 | 161 | 816 | 2787 |
| MOME004-CSR007 | 105-107 | 185 | 617 | 1265 | 981 | 900 | 364 | 1390 | 170 | 864 | 3274 |
| MOME004-CSR008 | 111-114 | 195 | 651 | 1335 | 1026 | 940 | 376 | 1460 | 180 | 912 | 3874 |
| MOME004-CSR009 | 117-122 | 208 | 695 | 1427 | 1100 | 995 | 408 | 1550 | 191 | 976 | 4600 |
| MOME004-CSR010 | 127-132 | 225 | 750 | 1542 | 1190 | 1060 | 441 | 1660 | 207 | 1056 | 5750 |
