Chain Stopper >> JIS F-2031 Pawl Type Chain Stopper >> JIS F-2031 Pawl Type Chain Stopper
|
| ||||||||

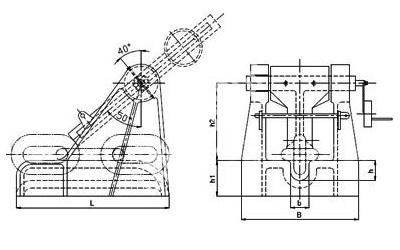

| JIS F-2031 Cast Steel Pawl Type Chain Stopper | ||||||||
| Product No. | Dimension(mm) | |||||||
| Nominal Chain Dia.(mm) | B | b | L | h | h1 | h2 |
Weight (kg) | |
| MOME004-CSP001 | 36-42 | 422 | 66 | 530 | 69 | 124 | 280 | 249 |
| MOME004-CSP002 | 42-46 | 480 | 75 | 620 | 78 | 142 | 316 | 396 |
| MOME004-CSP003 | 48-51 | 520 | 82 | 680 | 86 | 155 | 349 | 429 |
| MOME004-CSP004 | 52-56 | 560 | 89 | 730 | 95 | 170 | 370 | 465 |
| MOME004-CSP005 | 58-60 | 600 | 95 | 780 | 102 | 182 | 394 | 495 |
| MOME004-CSP006 | 62-64 | 630 | 101 | 835 | 109 | 191 | 421 | 582 |
| MOME004-CSP007 | 66-68 | 660 | 107 | 885 | 116 | 200 | 446 | 701 |
| MOME004-CSP008 | 70-73 | 700 | 115 | 950 | 125 | 212 | 478 | 846 |
| MOME004-CSP009 | 76-78 | 750 | 123 | 1015 | 133 | 222 | 511 | 1014 |
| MOME004-CSP010 | 81-84 | 800 | 134 | 1095 | 143 | 235 | 550 | 1268 |
| MOME004-CSP011 | 87-90 | 850 | 143 | 1170 | 153 | 248 | 588 | 1498 |
| MOME004-CSP012 | 92-95 | 900 | 151 | 1235 | 162 | 260 | 620 | 1769 |
| MOME004-CSP013 | 97-102 | 950 | 161 | 1350 | 175 | 276 | 665 | 2277 |
| MOME004-CSP014 | 105-107 | 1000 | 170 | 1400 | 185 | 289 | 703 | 2664 |
| MOME004-CSP015 | 111-114 | 1050 | 180 | 1480 | 195 | 302 | 742 | 3054 |
| MOME004-CSP016 | 117-122 | 1120 | 191 | 1585 | 207 | 318 | 790 | 3660 |
