Chain Stopper >> JIS F-2015 Bar Type Chain Stopper >> JIS F-2015 Bar Type Chain Stopper
|
|
| |||||||

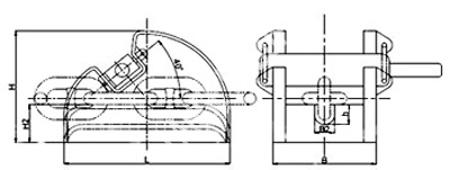

| JIS F-2015 CAST STEEL BAR Type CHAIN STOPPER | ||||||||
| Product No. | Dimension(mm) |
Weight (kg) | ||||||
| Nominal Chain Dia.(mm) | B | H | H2 | L | h | B2 | ||
| MOME004-CSB001 | 38-40 | 336 | 378 | 130 | 540 | 68 | 65 | 110 |
| MOME004-CSB002 | 42-44 | 366 | 412 | 142 | 590 | 75 | 72 | 138 |
| MOME004-CSB003 | 46-48 | 397 | 450 | 155 | 640 | 82 | 78 | 177 |
| MOME004-CSB004 | 50-52 | 428 | 491 | 170 | 695 | 88 | 85 | 214 |
| MOME004-CSB005 | 54-56 | 457 | 528 | 182 | 745 | 95 | 92 | 261 |
| MOME004-CSB006 | 58-60 | 488 | 465 | 195 | 795 | 102 | 98 | 319 |
| MOME004-CSB007 | 62-64 | 517 | 600 | 208 | 850 | 109 | 104 | 396 |
| MOME004-CSB008 | 66-68 | 547 | 635 | 220 | 900 | 116 | 110 | 428 |
| MOME004-CSB009 | 70-73 | 582 | 675 | 233 | 960 | 125 | 117 | 609 |
| MOME004-CSB010 | 76-78 | 617 | 715 | 245 | 1020 | 133 | 123 | 740 |
