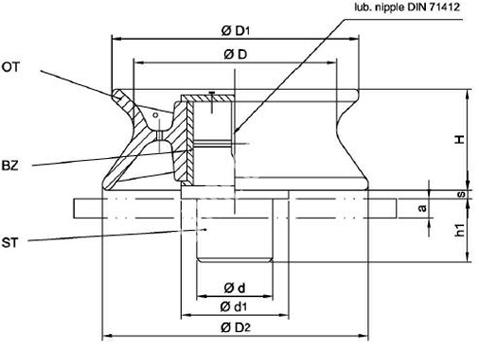

DIN71412 WARPING ROLLER | |||||||||||
|
Product No. |
D(mm) |
D1(mm) |
D2(mm) |
d(mm) |
d1(mm) |
H(mm) |
hi(mm) |
s(mm) |
a(mm) |
Fa(KN) |
Weight(KG) |
|
MOME108-DIN001 |
160 |
195 |
210 |
60 |
85 |
80 |
50 |
2 |
12 |
10 |
18 |
|
MOME108-DIN002 |
200 |
245 |
265 |
70 |
102 |
102 |
50 |
3 |
12 |
20 |
27 |
|
MOME108-DIN003 |
250 |
300 |
330 |
85 |
126 |
126 |
50 |
3 |
15 |
32 |
50 |
|
MOME108-DIN004 |
320 |
390 |
420 |
106 |
160 |
160 |
50 |
3 |
15 |
50 |
85 |
|
MOME108-DIN005 |
400 |
490 |
530 |
125 |
208 |
208 |
60 |
3 |
18 |
80 |
456 |
|
MOME108-DIN006 |
450 |
560 |
610 |
160 |
256 |
256 |
85 |
3 |
18 |
125 |
259 |
|
MOME108-DIN007 |
500 |
620 |
640 |
190 |
278 |
278 |
100 |
5 |
20 |
200 |
376 |
|
MOME108-DIN008 |
560 |
740 |
780 |
230 |
348 |
348 |
150 |
5 |
20 |
320 |
649 |
