Chain Wheel >> Chain Wheel(CB*290-84) >> Chain Wheel(CB*290-84)
|
| |||||||||||||||
|

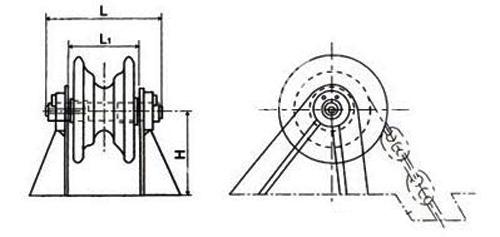

CHAIN WHEEL | |||||||||||||||
|
Product No. |
MOME106-CW001 |
MOME106-CW002 |
MOME106-CW003 |
MOME106-CW004 |
MOME106-CW005 |
MOME106-CW006 |
MOME106-CW007 |
MOME106-CW008 |
MOME106-CW009 |
MOME106-CW010 |
MOME106-CW011 |
MOME106-CW012 |
MOME106-CW013 |
MOME106-CW014 |
MOME106-CW015 |
|
Anchor chain |
12.5-14 |
16-17.5 |
19-20.5 |
22-24 |
26-28 |
30-32 |
34-36 |
38-40 |
42-44 |
46-48 |
50-52 |
54-56 |
58-60 |
62-64 |
66-68 |
|
H(mm) |
112 |
138 |
154 |
176 |
198 |
226 |
248 |
274 |
296 |
324 |
346 |
372 |
394 |
422 |
444 |
|
L(mm) |
176 |
214 |
234 |
254 |
286 |
320 |
350 |
388 |
424 |
454 |
480 |
514 |
542 |
574 |
604 |
|
L1(mm) |
102 |
130 |
146 |
168 |
192 |
214 |
240 |
266 |
294 |
316 |
338 |
362 |
378 |
402 |
424 |
|
Weight(KG) |
8.6 |
18 |
26.7 |
39.4 |
58 |
85 |
113.5 |
157.6 |
204 |
257.7 |
310 |
393 |
457.9 |
581.6 |
663.7 |
