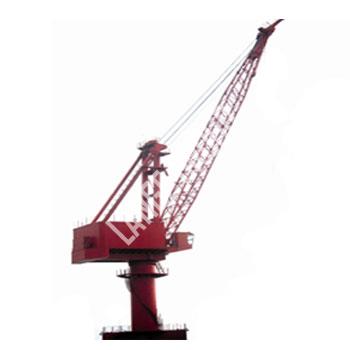

Shipyard Pedestal Crane |
||||
Main hoist |
Aux hosit |
|||
Boom angle[o] |
Radius of load[m] |
Four part line reeving |
||
static capacity[lbs] |
Dynamic capacity[lbs] |
Stat/Dyn[lbs] |
||
80.800 |
20.000 |
60,650 |
54,500 |
9,600 |
76.500 |
25.000 |
59,746 |
50,712 |
9,600 |
74.900 |
30.000 |
56,999 |
42,600 |
9,600 |
71.900 |
35.000 |
48,288 |
32,111 |
9,600 |
68.900 |
40.000 |
41,660 |
27,703 |
9,600 |
65.800 |
45.000 |
36,465 |
24,429 |
9,600 |
62.600 |
50.000 |
32,286 |
21,470 |
9,600 |
59.300 |
55.000 |
28,849 |
19,180 |
9,600 |
55.900 |
60.000 |
25,975 |
17,273 |
9,600 |
52.400 |
65.000 |
23,534 |
15,650 |
9,600 |
48.700 |
70.000 |
21,436 |
14,250 |
9,600 |
44.700 |
75.000 |
19,614 |
13,043 |
9,600 |
40.500 |
80.000 |
18,016 |
11,980 |
9,600 |
35.900 |
85.000 |
16,603 |
11,041 |
9,600 |
30.700 |
90.000 |
15,345 |
10,204 |
9,600 |
24.500 |
95.000 |
14,218 |
9,455 |
9,600 |
16.200 |
100.000 |
13,202 |
8,845 |
9,600 |
