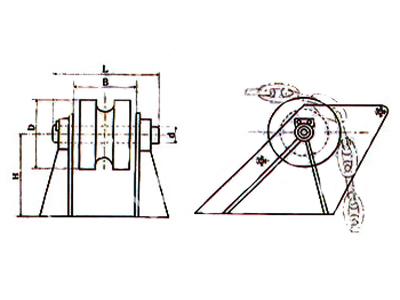

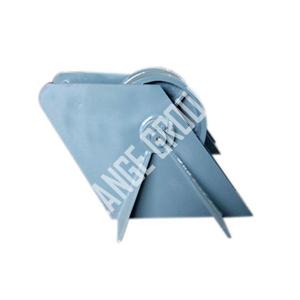

CHAIN WHEEL

Product No.

Diameter of
Cable(mm)

D
(mm)

d
(mm)

L
(mm)

B
(mm)

H
(mm)

K

Weight
(KG)

MOME106-CW001

12.5-14

154

26

164

94

150

4

12.7

MOME106-CW002

16-17.5

192

32

186

108

170

5

21

MOME106-CW003

19-20.5

226

38

208

122

210

32.6

MOME106-CW004

22-24

264

42

236

142

240

6

50

MOME106-CW005

26-28

308

48

262

160

280

74

MOME106-CW006

30-32

352

54

292

178

310

7

104

MOME106-CW007

34-36

396

58

319

201

360

144.4

MOME106-CW008

38-40

440

64

349

219

390

8

189.8

MOME106-CW009

42-44

484

70

377

239

430

239.9

MOME106-CW010

46-48

528

74

405

259

470

9

305.5

MOME106-CW011

50-52

572

78

430

280

510

370.3

MOME106-CW012

54-56

616

82

466

302

540

10

453.6

MOME106-CW013

58-60

660

88

492

320

580

11

572.3

MOME106-CW014

62-64

704

94

526

342

620

12

687.5

MOME106-CW015

66-68

748

98

552

360

660

13

832.3
