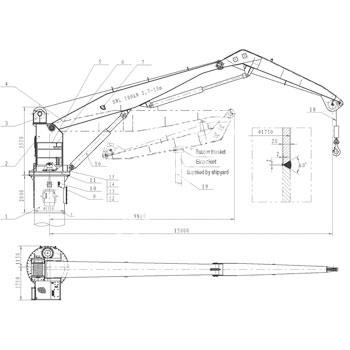

Hydraulic Knuckle Boom Crane | |||||||||||
|
Type |
SWL[Kn] |
Max-working radius[m] |
Min-working radius[m] |
Lifting speed[m/min] |
Rotating velocity[r/min] |
Luffing time[s] |
Lifting height[m] |
Slewing angle[Degree] |
Trim/Heel[Degree] |
Motor Type |
Power[KW] |
|
MDEE040-KB001 |
30 |
8-18 |
2.2-4.8 |
15 |
0.9 |
70 |
30 |
360 |
2/5 |
YH180L-4 |
22 |
|
MDEE040-KB002 |
50 |
12-20 |
3.3-5.3 |
15 |
0.75 |
80 |
30 |
360 |
2/5 |
YH225S-4 |
37 |
|
MDEE040-KB003 |
80 |
12-20 |
3.3-5.3 |
15 |
0.75 |
100 |
40 |
360 |
2/5 |
YH225M-4 |
55 |
|
MDEE040-KB004 |
100 |
12-20 |
3.3-5.3 |
15 |
0.75 |
110 |
40 |
360 |
2/5 |
YH280S-4 |
75 |
|
MDEE040-KB005 |
150 |
12-20 |
3.3-5.3 |
15 |
0.6 |
110 |
50 |
360 |
2/5 |
YH280M-4 |
90 |
|
MDEE040-KB006 |
200 |
15-25 |
3.4-5.6 |
15 |
0.6 |
120 |
50 |
360 |
2/5 |
YH280S-4 |
75 |
|
MDEE040-KB007 |
250 |
15-30 |
4-7.9 |
15 |
0.5 |
120 |
50 |
360 |
2/5 |
YH280M-4 |
90 |
|
MDEE040-KB008 |
300 |
15-30 |
4-7.9 |
15 |
0.4 |
140 |
60 |
360 |
2/5 |
YH280M-4 |
90 |
|
Basic features: Self contained unit with integrated power pack Simple mounting by welding of the pedestal to deck and connecting the power cable No electric slipring Fail-safe brakes on all movements Welded box boom (jib) for low maintenance Maintenance-free jib- and cylinder bearings. Standard equipment: Pedestal height between 1.1 and 1.5 m Class certificate on the pedestal Control platform on the Crane (left or right-hand side) Full documentation/Owner's manual Working radius and lifting capacity (SWL) according to customer's request Optional equipment Starter for the elc-motor Remote control by cable or radio Drivers cabin Automatic slew stop systems Full marine paint system Connection to the ship's ring line hydraulic system Extended pedestal Light on jib Stainless steel piping Approval by any classification society Enclosed operator's cabin Set of "Maker's recommended spare parts". Others according to the customer's requirements | |||||||||||
