MOORFAST ANCHOR

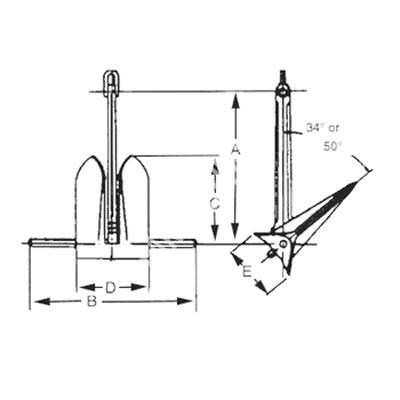

Product No. Anchor Weight(kg) A B C D E Proof Test(kN)
MOME001-MF001 1000 61 75 37 25 19 30000
MOME001-MF002 3000 88 109 54 37 27 72500
MOME001-MF003 6000 101 143 61 42 31 121300
MOME001-MF004 8000 122 153 75 51 38 145000
MOME001-MF005 10000 131 157 80 55 41 165600
MOME001-MF006 12000 139 167 85 58 43 184700
MOME001-MF007 14000 147 177 90 61 45 205000
MOME001-MF008 16000 153 187 94 64 48 222700
MOME001-MF009 20000 164 196 102 69 51 249400
MOME001-MF010 30000 189 217 118 79 59 319400
MOME001-MF011 40000 215 248 127 86 63 386000
MOME001-MF012 50000 222 257 132 89 66 448300
MOME001-MF013 60000 232 271 140 95 70 506200
MOME001-MF014 70000 244 274 147 100 73 561400
