Anchor >> High Holding Power Anchor(HHP) >> Pool Anchor >> N Type Pool AnchorPool Anchor N Type

Pool N  Type Anchor

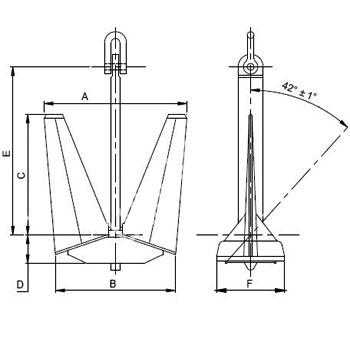

Product No. Anchor Weight(kg) A B C D E F G H K
MDE080-PN001 60 534 454 361 152 586 107 77 22 253
MDE080-PN002 90 612 520 413 174 671 107 77 22 290
MDE080-PN003 180 771 655 520 220 845 107 77 22 365
MDE080-PN004 360 971 825 655 277 1064 134 98 28 460
MDE080-PN005 585 1142 970 770 325 1251 202 140 40 541
MDE080-PN006 765 1248 1060 842 356 1368 202 140 40 591
MDE080-PN007 1080 1400 1189 945 399 1535 234 173 50 663
MDE080-PN008 1305 1491 1267 1006 425 1635 306 210 60 706
MDE080-PN009 1575 1588 1349 1072 452 1740 306 210 60 752
MDE080-PN010 1845 1674 1422 1129 477 1834 361 260 75 793
MDE080-PN011 2140 1758 1494 1187 501 1927 361 260 75 833
MDE080-PN012 2475 1846 1568 1246 526 2023 361 260 75 874
MDE080-PN013 2835 1931 1640 1303 550 2116 400 285 80 915
MDE080-PN014 3240 2019 1715 1362 575 2213 447 320 90 956
MDE080-PN015 3670 2104 1787 1420 599 2306 447 320 90 997
MDE080-PN016 4210 2203 1871 1487 628 2414 494 355 100 1043
MDE080-PN017 4840 2307 1960 1557 657 2529 494 355 100 1093
MDE080-PN018 5515 2410 2047 1626 687 2641 558 395 110 1142
MDE080-PN019 6225 2509 2131 1693 715 2750 630 460 130 1189
MDE080-PN020 6975 2606 2214 1759 742 2856 630 460 130 1234
MDE080-PN021 7875 2713 2305 1834 773 2974 630 460 130 1285
MDE080-PN022 8775 2813 2389 1898 801 3083 690 490 140 1333
MDE080-PN023 9675 2906 2468 1961 828 3185 690 490 140 1377
MDE080-PN024 10575 2993 2543 2020 853 3281 755 520 150 1418
MDE080-PN025 11550 3083 2618 2080 878 3379 805 555 160 1460
MDE080-PN026 12675 3179 2701 2146 906 3485 805 555 160 1506
MDE080-PN027 14100 3294 2798 2223 938 3611 870 590 170 1561
MDE080-PN028 16125 3445 2926 2325 981 3776 925 630 180 1632
