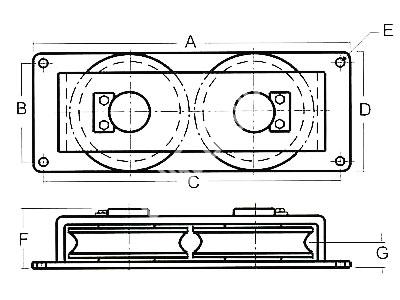

DOUBLE HORIZONTAL LEAD SHEAVE

Product No.

Sheave
Diameter(inch)

Wire Rope
Size(inch)

Safe Work
Load(pounds)

Dimensions(inch)

A

B

C

D

E

F

G

MDE102-DH001

6

1¨M2

4000

15 1¨M2

5

14 1¨M2

6

7¨M16

2 3¨M4

1 1¨M8

MDE102-DH002

8

5¨M8

8000

6 3¨M4

6 3¨M4

18 3¨M4

8

9¨M16

3 1¨M4

1 3¨M8

MDE102-DH003

10

3¨M4

12000

8 1¨M2

8 1¨M2

23

10

11¨M16

3 3¨M4

1 3¨M4

MDE102-DH004

14

7¨M8

20000

11 1¨M2

11 1¨M2

21

13 1¨M2

13¨M16

2 1¨M4

2 1¨M4
