Anchor >> Conventional Anchor >> Spek Anchor >> CB711-95 Spek AnchorSpek Anchor CB711-95

SPEK ANCHOR CB711-95

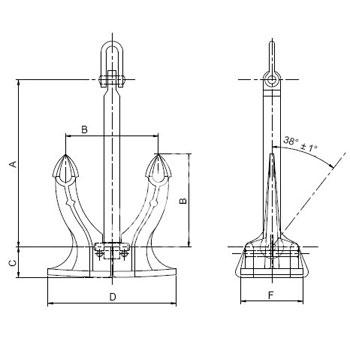

Product No. Anchor Weight A B C D F
kg mm mm mm mm mm
MOME001-SP001 100 672 373 122 515 250
MOME001-SP002 150 770 428 128 590 290
MOME001-SP003 180 846 470 140 640 300
MOME001-SP004 240 900 500 150 690 358
MOME001-SP005 300 990 550 166 760 398
MOME001-SP006 360 1065 600 180 828 411
MOME001-SP007 420 1080 600 180 828 411
MOME001-SP008 480 1170 650 196 900 446
MOME001-SP009 570 1170 650 196 900 475
MOME001-SP010 660 1260 700 210 962 486
MOME001-SP011 780 1355 750 225 1032 519
MOME001-SP012 900 1445 800 240 1100 547
MOME001-SP013 1020 1538 850 252 1170 573
MOME001-SP014 1140 1620 900 268 1240 591
MOME001-SP015 1290 1710 900 268 1240 620
MOME001-SP016 1440 1710 950 279 1300 640
MOME001-SP017 1590 1710 950 279 1300 671
MOME001-SP018 1740 1800 1000 300 1378 669
MOME001-SP019 1920 1850 1050 312 1454 704
MOME001-SP020 2100 1890 1050 312 1454 717
MOME001-SP021 2280 2010 1050 312 1454 736
MOME001-SP022 2460 2010 1100 324 1514 766
MOME001-SP023 2640 2070 1150 352 1584 794
MOME001-SP024 2850 2070 1150 352 1584 804
MOME001-SP025 3060 2155 1200 360 1650 802
MOME001-SP026 3300 2155 1200 360 1650 834
MOME001-SP027 3540 2350 1200 360 1650 834
MOME001-SP028 3780 2400 1350 393 1850 880
MOME001-SP029 4050 2430 1350 393 1850 917
MOME001-SP030 4320 2520 1400 413 1926 914
MOME001-SP031 4590 2520 1400 413 1926 931
MOME001-SP032 4890 2520 1400 413 1926 954
MOME001-SP033 5250 2610 1450 414 2000 964
MOME001-SP034 5610 2610 1450 414 2000 981
MOME001-SP035 6000 2700 1500 446 2060 1006
MOME001-SP036 6450 2700 1500 446 2060 1028
MOME001-SP037 6900 2890 1550 456 2138 1034
MOME001-SP038 7350 2890 1550 456 2138 1062
MOME001-SP039 7800 2920 1550 456 2138 1091
MOME001-SP040 8300 3060 1700 510 2332 1126
MOME001-SP041 8700 3060 1700 510 2332 1156
MOME001-SP042 9300 3060 1700 510 2332 1142
MOME001-SP043 9900 3160 1700 510 2332 1188
MOME001-SP044 10500 3190 1770 531 2440 1187
MOME001-SP045 11100 3290 1770 531 2440 1211
MOME001-SP046 11700 3390 1770 531 2440 1237
MOME001-SP047 12300 3440 1910 573 2632 1279
MOME001-SP048 12900 3440 1910 573 2632 1279
MOME001-SP049 13500 3440 1910 573 2632 1316
MOME001-SP050 14100 3440 1910 573 2632 1353
MOME001-SP051 14700 3690 2050 615 2824 1369
MOME001-SP052 15400 3690 2050 615 2824 1369
MOME001-SP053 16100 3690 2050 615 2824 1387
MOME001-SP054 16900 3820 2120 636 2922 1415
MOME001-SP055 17800 3950 2120 636 2922 1431
MOME001-SP056 18800 3950 2190 657 3018 1461
