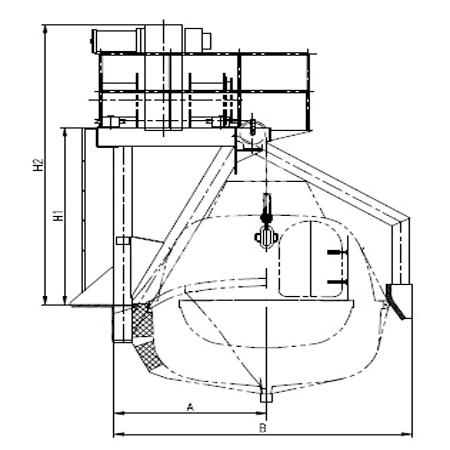

| PA Type Offshore Davit | ||||||
| Product No. | S.W.L (KN) |
Main Dimensions(mm) | Suitable Boat | |||
| A | B | H1 | H2 | |||
| MDEE050-PA001 | 65 | 1400 | 2870 | 2200 | 3600 | 5m-7.5m |
| MDEE050-PA002 | 85 | 1730 | 3550 | 2375 | 3650 | 7.5m-8m |
| MDEE050-PA003 | 105 | 1750 | 3600 | 2400 | 3900 | 8.5m |
| MDEE050-PA004 | 138 | 2130 | 4250 | 2700 | 4050 | 9m-10m |
